SANA'A patrol boats (2011)
Sana'a 2011
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
2601 سناء [Sana'a] 2602 أضن [Aden] |
Bollinger, Lockport, USA: 2601, 2602 |
2011: 2601, 2602 |
none |
none |
in service (2020): 2601, 2602 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 90 |
| Length, m | 26.5 |
| Breadth, m | 5.90 |
| Draught, m | 1.70 |
| No of shafts | 2 |
| Machinery | 2 MTU 8V396 TE94 diesels |
| Power, h. p. | 3000 |
| Max speed, kts | 26 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 800(8) |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | SPS-73 radar |
| Complement | 11 |
Graphics

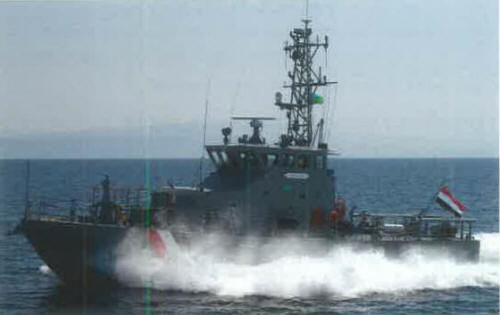

Sana'a 2011
Project history
Coast Guard. Marine Protector (Stan Patrol 2606) class.
Modernizations
None.
Naval service
No significant events.
