FIGHTING SHIPS OF THE WORLD
YEMEN, SOUTH / YEMEN
NON-NAVAL FORCES
Archangel patrol launches (2006)
2006
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
4 units |
Safe Boats, Port Orchard, USA: 4 units |
2006: 4 units |
none |
none |
in service (2020): 4 units |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 13 |
| Length, m | 12.8 |
| Breadth, m | 4.10 |
| Draught, m | 0.80 |
| No of shafts | 2 waterjets |
| Machinery | 2 Caterpillar C9 diesels |
| Power, h. p. | 550 |
| Max speed, kts | 36 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 300(25) |
| Armament | 2 x 1 - 7.6/90 |
| Electronic equipment | Furuno radar |
| Complement | 3 |

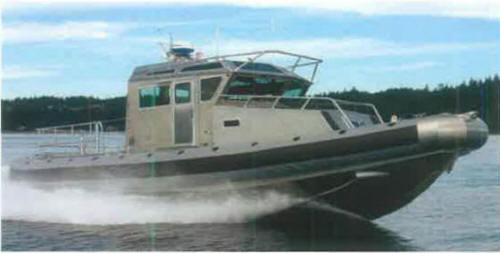

Graphics
2006
Project history
Enhanced variant of the Defender class. Have bare aluminium structure with polyethylene rigid foam collar. Donated by US. Coast Guard.
Modernizations
None.
Naval service
No significant events.
