FIGHTING SHIPS OF THE WORLD
YEMEN, SOUTH / YEMEN
COASTAL FORCES
No 971 fast attack craft (missile) (1990-1991)
No 124 1995
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 971, early 1990s- 124 | 01726 | Vympel, Rybinsk, USSR | 7.12.1990 | in service (2020) | |||
| 976, early 1990s- 125 | 01727 | Vympel, Rybinsk, USSR | 15.1.1991 | discarded 2001 |
Technical data
| Displacement standard, t | 385 |
|---|---|
| Displacement full, t | 455 |
| Length, m | 56.1 |
| Breadth, m | 10.2 |
| Draught, m | 2.20 |
| No of shafts | 2 |
| Machinery | 2 M-15E gas turbine units (each consist of M-75 cruising gas turbine and M-70 boost gas turbine) |
| Power, h. p. | 10000 + 24000 = 34000 |
| Max speed, kts | 43 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2200(14) |
| Armament | 2 x 2 P-20M Termit SSM (4 P-20M), 1 x 4 Strela-2M SAM (16 9M32M), 1 x 1 - 76/59 AK-176M, 2 x 6 - 30/54 AK-630M |
| Electronic equipment | Garpun-E, MR-123 Vympel-A, Kivach-2 radars, 2x PK-16 decoy RL |
| Complement | 37 |
Standard scale images

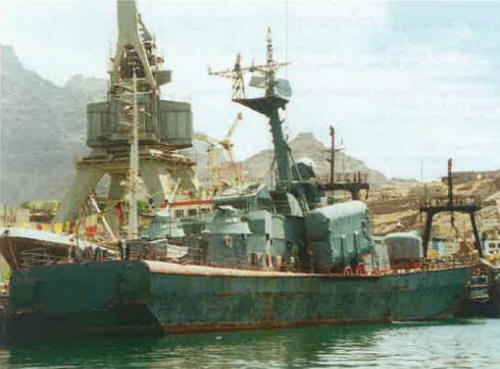

No 124 1995
Graphics
No 124 1995
Project history
Soviet-built fast attack craft (missile) of export project 1241RE.
Modernizations
None.
Naval service
No 125, defected to Oman in mid-July 1994, was later returned.
