NAVYPEDIA


Yuniu 13 1981

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
200 سناء [Sana'a], 1990- 143 سناء [Sana'a] 300 13 يونيو [Yuniu 13], 1990 - 142 رمضان [Ramadan] 400 25 سبتمبر [Septambar 25], 1990- 141 25 سبتمبر [Septambar 25]	Halter Marine, New Orleans, USA: 200, 300, 400	1978: 200, 300, 400	none	Yemen unification, 1990: 200, 300, 400	none

Technical data

Displacement standard, t
Displacement full, t	90
Length, m	32.0
Breadth, m	6.30
Draught, m	1.90
No of shafts	3
Machinery	3 General Motors 16V71TI diesels
Power, h. p.	1400
Max speed, kts	28
Fuel, t	diesel oil 16
Endurance, nm(kts)
Armament	1 x 2 - 23/82 ZU-23-2, 1 x 2 - 14.5/93, 2 x 1 - 12.7/79
Electronic equipment	Decca 914 radar
Complement	14

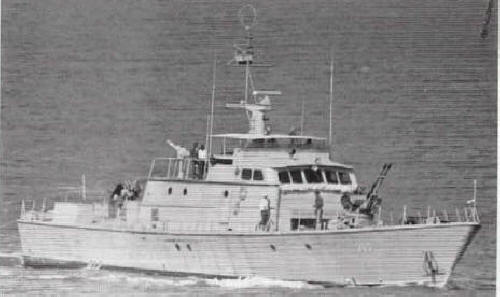

Graphics

Project history

Broadsword class. Soviet armament was installed after delivery.

Modernizations

None.

Naval service

No significant events.
