VIETNAM / NORTH VIETNAM
ESCORTS
HQ-375 corvettes (2008-)

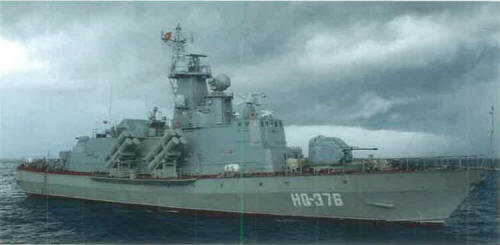

HQ-376 2009

Ships


Name No Yard No Builder Laid down Launched Comp Fate
HQ-375 HQ-375 01303 Vympel, Rybinsk, Russia   2006 2008 in service (2019)
HQ-376 HQ-376 01304 Vympel, Rybinsk, Russia   4/2007 2009 in service (2019)
HQ-377 HQ-377 M1 Ba Son, Ho Chi Minh City 2010 8.4.2013 27.6.2014 in service (2019)
HQ-378 HQ-378 M2 Ba Son, Ho Chi Minh City 2010 8.4.2013 27.6.2014 in service (2019)
HQ-379 HQ-379 M3 Ba Son, Ho Chi Minh City 2012 24.6.2014 24.9.2015 in service (2019)
HQ-380 HQ-380 M4 Ba Son, Ho Chi Minh City 2012 24.6.2014 24.9.2015 in service (2019)
HQ-382 HQ-382 M5 Ba Son, Ho Chi Minh City 2013 17.4.2016 9.10.2017 in service (2019)
HQ-383 HQ-383 M6 Ba Son, Ho Chi Minh City 2013 17.4.2016 9.10.2017 in service (2019)
HQ-384 HQ-384 M7 Ba Son, Ho Chi Minh City 2015 2018 2019 building (2019)
HQ-385 HQ-385 M8 Ba Son, Ho Chi Minh City 2015 2018 2019 building (2019)
HQ-386 HQ-386 M9 Ba Son, Ho Chi Minh City 2016 2019 2020 building (2019)
HQ-387 HQ-387 M10 Ba Son, Ho Chi Minh City 2016 2019 2020 building (2019)


Technical data


Displacement standard, t

480

Displacement full, t

550

Length, m

52.5 pp 59.9 oa

Breadth, m

11.5

Draught, m

2.50 hull 4.51 propellers

No of shafts

2

Machinery

CODAG: 2 M-504 diesels + 2 UGT-6000 gas turbines

Power, h. p.

10000 + 24000 = 34000

Max speed, kts

38

Fuel, t

diesel / gas turbine oil

Endurance, nm(kts)

2400(14)

Armament

4 x 4 Uran SSM (16 3M24E), 1 x 4 Strela-3 SAM (12 9K34), 1 x 1 - 76/59 AK-176M, 2 x 6 - 30/54 AK-630M

Electronic equipment

Garpun-E, Kivach-2, Pozitiv-ME1.2, MR-123 Vympel-A radars, 4x PK-10 decoy RL

Complement

39



Standard scale images


<i>HQ-375</i> 2010
HQ-375 2010


Graphics


<i>HQ-376 </i>2009
HQ-376 2009


Project history

Russian export project 12418. First two were ordered in 2004 for construction in Russia, later units are built locally in Vietnam.

Modernizations

None.

Naval service

No significant events.
