Ɖinh Tiên Hoàng 2011

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Ɖinh Tiên Hoàng	011	954	SSZ im. Gorkogo, Zelenodolsk, Russia	10.7.2007	12.12.2009	6.3.2011	in service (2019)
Lý Thái Tổ	012	955	SSZ im. Gorkogo, Zelenodolsk, Russia	27.11.2007	16.3.2010	22.8.2011	in service (2019)
Trần Hưng Ɖạo	015	956	SSZ im. Gorkogo, Zelenodolsk, Russia	24.9.2013	27.4.2016	1.4.2017	in service (2019)
Quang Trung	016	957	SSZ im. Gorkogo, Zelenodolsk, Russia	24.9.2013	26.5.2016	6.2.2018	in service (2019)
Lý Thường Kiệt			SSZ im. Gorkogo, Zelenodolsk, Russia				ordered (2019)
Ngô Quyền			SSZ im. Gorkogo, Zelenodolsk, Russia				ordered (2019)

Technical data

Displacement standard, t	1560
Displacement full, t	2100
Length, m	93.5 pp 102.1 oa
Breadth, m	13.6
Draught, m	5.30 sonar 3.60 hull
No of shafts	2
Machinery	CODOG: 2 Zoria DO90 gas turbines / 1 86B diesel
Power, h. p.	29920 / 7480
Max speed, kts	26
Fuel, t	diesel / gas turbine oil
Endurance, nm(kts)	3500(14)
Armament	011, 012: 2 x 4 Uran-E SSM (8 3M24E), 1 x (8 Sosna-R SAM + 2 x 6 - 30/54) Palma CADS (20 9M340E), 1 x 1 - 76/59 AK-176M, 2 x 6 - 30/54 AK-630, 2 x 1 - 14.5/93, 2 x 1 - 7.6/90, 1 x 12 RPK-8E ASWRL, helicopter deck 015, 016: 2 x 4 Uran-E SSM (8 3M24E), 1 x (8 Sosna-R SAM + 2 x 6 - 30/54) Palma CADS (20 9M340E), 1 x 1 - 76/59 AK-176M, 2 x 6 - 30/54 AK-630, 2 x 1 - 14.5/93, 2 x 1 - 7.6/90, 2 x 2 - 533 TT, 1 x 12 RPK-8E ASWRL, helicopter deck
Electronic equipment	Pozitiv-ME1, Monolit, Vaygach, Puma 5P-10E, Vympel-A radars, MGK-335EM-03 sonar, TK-25E ECM suite, Spektr-F4 laser detector, 4x PK-10 Smelyy decoy RL, Sigma-E CCS
Complement	121

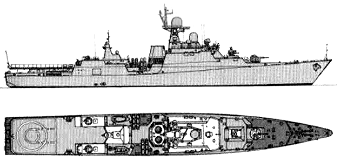

Standard scale images

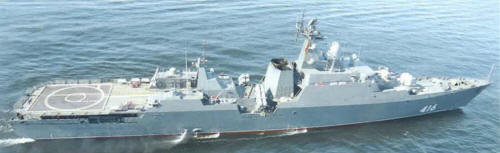

Graphics

Project history

Russian export project 11661E, modified Tatarstan class. First two units were ordered in 2006, second pair in 2011, third pair in 2015. Differed from Russian ships by presence of helicopter deck above the VDS housing and Palma CADS instead of fwd 30mm gatling gun.

Modernizations

None.

Naval service

No significant events.
