HQ-56 patrol boats (1998)
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
HQ-56-59 |
Transfield, Brisbane, Australia: HQ-56-59 |
1998: HQ-56-59 |
none |
none |
in service (2019): HQ-56-59 |
Technical data
| Displacement standard, t | 36 |
|---|---|
| Displacement full, t | 44 |
| Length, m | 22.4 |
| Breadth, m | 7.50 |
| Draught, m | 1.20 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 12V183 TE93 diesels |
| Power, h. p. | 2300 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil 6.5 |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 20/90 GAM-B01 |
| Electronic equipment | radar |
| Complement | 7 |
Standard scale images

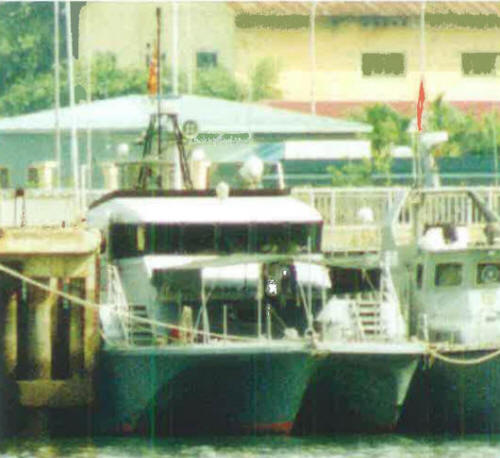

HQ-56 2000
Graphics
Project history
Used by customs service. Aluminium-construction trimaran fwd and catamaran aft.
Modernizations
None.
Naval service
No significant events.
