VIETNAM / NORTH VIETNAM
COASTAL FORCES
HQ-37 patrol craft (1998-2003)





HQ-55 2000

Ships


Names Builders Commissioned Losses Transfers Discarding

HQ-37

HQ-55

BP-29-01-01

BP-29-98-01

VINASHIN, Ninh Hoa: HQ-37, 55, BP-29-01-01, 29-98-01

1998-2003: HQ-37, 55, BP-29-01-01, 29-98-01

none

none

in service (2019): HQ-37, 55, BP-29-01-01, 29-98-01



Technical data


Displacement standard, t

38

Displacement full, t
Length, m

29.0

Breadth, m
Draught, m

1.20

No of shafts

2

Machinery

4 Scania DI14 diesels

Power, h. p.

2500

Max speed, kts

30

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

2 x 2 - 14.5/93

Electronic equipment

Lotsiya radar

Complement

11 - 14



Graphics

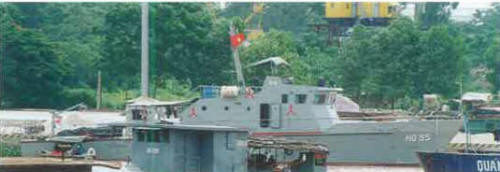

<i>HQ-55 </i>2000
HQ-55 2000


Project history

Vietnamese version of Soviet project 1400ME with simplified hullform and superstructure shape.

Modernizations

None.

Naval service

: No significant events.
