HQ-331 torpedo hydrofoils (1984-1986)

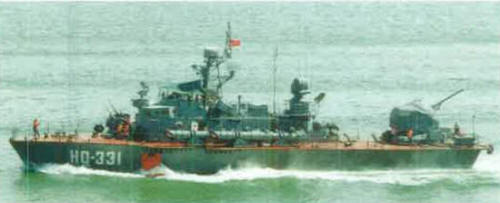

HQ-331 2000
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| HQ-331 | HQ-331 | 826 | Vladivostok SYd, USSR | 1984 | in service (2019) | ||
| HQ-332 | HQ-332 | 827 | Vladivostok SYd, USSR | 1984 | in service (2019) | ||
| HQ-333 | HQ-333 | 828 | Vladivostok SYd, USSR | 1985 | in service (2019) | ||
| HQ-334 | HQ-334 | 829 | Vladivostok SYd, USSR | 1.1986 | in service (2019) | ||
| HQ-335 | HQ-335 | 830 | Vladivostok SYd, USSR | 1.1986 | in service (2019) |
Technical data
| Displacement standard, t | 218 |
|---|---|
| Displacement full, t | 250 |
| Length, m | 39.5 |
| Breadth, m | 7.5 wl 13.6 foil |
| Draught, m | 1.64 hull 3.24 foil |
| No of shafts | 3 |
| Machinery | 3 M-504B diesels |
| Power, h. p. | 15000 |
| Max speed, kts | 44 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1450(14) |
| Armament | HQ-331-333: 1 x 2 - 57/50 AK-725, 1 x 2 - 25/82 2M-3M, 4 - 533 TT, 2 DCR (10) HQ-334, 335: 1 x 2 - 57/50 AK-725, 1 x 2 - 25/82 2M-3M |
| Electronic equipment | HQ-331-333: MR-102 Baklan, MR-103 Bars, MR-206 radars, MG-329 Sheksna sonar, Dozor-1 CCS HQ-334, 335: MR-102 Baklan, MR-103 Bars, MR-206 radars, Dozor-1 CCS |
| Complement | 25 |
Standard scale images
HQ-331 1990
Graphics
HQ-331 2000
Project history
Soviet project 205M hydrofoils.
Modernizations
None.
Naval service
No significant events.
