FIGHTING SHIPS OF THE WORLD
VIETNAM / NORTH VIETNAM
COASTAL FORCES
HQ-301 fast attack craft (torpedo) (1962-1972/1979-1983)
HQ-305 2011
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| HQ-301 (ex-T-...) | HQ-301 | USSR | 1962-72 // 16.4.1979 | in service (2019) | |||
| HQ-302 (ex-T-...) | HQ-302 | USSR | 1962-72 // 16.4.1979 | stricken late 1990s? | |||
| HQ-303 (ex-T-...) | HQ-303 | USSR | 1962-72 // 12.9.1979 | stricken late 1990s? | |||
| HQ-304 (ex-T-...) | HQ-304 | USSR | 1962-72 // 12.9.1979 | stricken late 1990s? | |||
| HQ-305 (ex-T-...) | HQ-305 | USSR | 1962-72 // 8.1980 | in service (2019) | |||
| HQ-306 (ex-T-...) | HQ-306 | USSR | 1962-72 // 8.1980 | stricken late 1990s? | |||
| HQ-307 (ex-T-...) | HQ-307 | USSR | 1962-72 // 10.1980 | stricken late 1990s? | |||
| HQ-308 (ex-T-...) | HQ-308 | USSR | 1962-72 // 10.1980 | stricken late 1990s? | |||
| HQ-309 (ex-T-...) | HQ-309 | USSR | 1962-72 // 1981 | stricken late 1990s? | |||
| HQ-310 (ex-T-...) | HQ-310 | USSR | 1962-72 // 1981 | stricken late 1990s? | |||
| HQ-311 (ex-T-...) | HQ-311 | USSR | 1962-72 // 1981 | stricken late 1990s? | |||
| HQ-312 (ex-T-...) | HQ-312 | USSR | 1962-72 // 1981 | stricken late 2000s? | |||
| HQ-313 (ex-T-...) | HQ-313, late 2000s- CSB-5011? | USSR | 1962-72 // 6.1983 | to Coast Guard late 2000s, in service (2019)? | |||
| HQ-314 (ex-T-...) | HQ-314, late 2000s- CSB-5012? | USSR | 1962-72 // 6.1983 | to Coast Guard late 2000s, in service (2019)? | |||
| HQ-315 (ex-T-...) | HQ-315, late 2000s- CSB-5013? | USSR | 1962-72 // 6.1983 | to Coast Guard late 2000s, in service (2019)? | |||
| HQ-316 (ex-T-...) | HQ-316, late 2000s- CSB-5014? | USSR | 1962-72 // 6.1983 | to Coast Guard late 2000s, in service (2019)? |
Technical data
| Displacement standard, t | 129 |
|---|---|
| Displacement full, t | 152 |
| Length, m | 34.1 |
| Breadth, m | 6.77 |
| Draught, m | 1.72 |
| No of shafts | 3 |
| Machinery | 3 M-503A/G diesels |
| Power, h. p. | 12000 |
| Max speed, kts | 46 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1700(13) |
| Armament | 2 x 2 - 30/71 AK-230, 4 - 533 TT, 2 DC, 6 mines |
| Electronic equipment | MR-102 Baklan, MR-104 Rys' radars |
| Complement | 21 |
Standard scale images
HQ-301 1980
Graphics

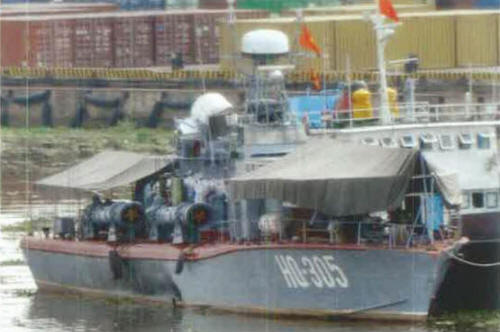

HQ-305 2011
Project history
Former Soviet FACs of project 206.
Modernizations
late 2000s, four units: - 2 x 2 - 30/71, 4 - 533 TT, 2 DC, 6 mines, MR-104 Rys' radar; + 2 x 2 - 25/82 2M-3M, 1 x 1 - 14.5/93, Decca radar
Naval service
The fate of individual boats is unknown. Data on the fate of individual boats in the table reflect only the number of units.
05 2011
