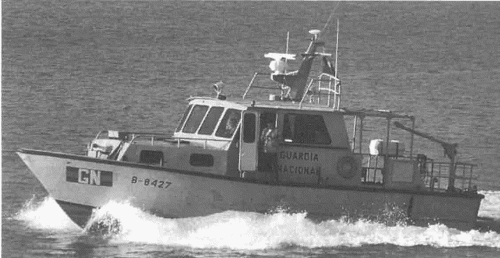

Río Sarare 1996

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
B8421 Río Arauca II B8422 Río Catatumbo II B8423 Río Apure II B8424 Río Nearo II B8425 Río Meta II B8426 Río Portuguesa II B8427 Río Sarare B8428 Río Uribante B8429 Río Cinaruco B8430 Río Icabara B8431 Río Guarico II B8432 Río Yaracuy	SeaArk Workboat, Monticello, USA: B8421-8432	1987: B8421-8432	none	none	in service (2019): B8421-8432

Technical data

Displacement standard, t
Displacement full, t	15
Length, m	12.6 pp 13.3 oa
Breadth, m	4.47
Draught, m	1.17
No of shafts	2
Machinery	2 General Motors 8V92T diesels
Power, h. p.	1100
Max speed, kts	28
Fuel, t	diesel oil
Endurance, nm(kts)	600(25)
Armament	2 x 1 - 12.7/90
Electronic equipment	Furuno FR10 or Raytheon 1900 radar
Complement	4

Graphics

Project history

Aluminium construction. All were completed in 1984 but due financial problems delivered only in 1987.

Modernizations

None.

Naval service

No significant events.
