1984

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
A8201 Punta Barima A8202 Punta Mosquit A8203 Punta Mulatos A8204 Punta Perret A8205 Punta Cardon A8206 Punta Playa A8207 Punta Macoya A8208 Punta Moron A8209 Punta Unare A8210 Punta Ballena A8211 Punta Macuro A8212 Punta Mariusa	Rober E. Derecktor SY, Mamaroneck, USA: A8201-8212	1982: A8201-8206 1987: A8207-8212	none	none	in service (2019): A8201-8212

Technical data

Displacement standard, t
Displacement full, t	15
Length, m	13.1
Breadth, m	4.10
Draught, m	1.20
No of shafts	2
Machinery	2 General Motors 12V92MTI diesels
Power, h. p.	1950
Max speed, kts	29
Fuel, t	diesel oil
Endurance, nm(kts)	390(25)
Armament	2 x 1 - 12.7/90
Electronic equipment	Furuno or Raytheon radar
Complement	4

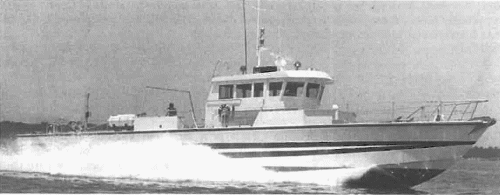

Graphics

Project history

A8201-8203 and 8207-8209 have a vehicle ramp aft. Aluminium construction. Last six were completed in 1984 but due financial problems delivered only in 1987.

Modernizations

1996-1998, all: were re-engined with 2 MTU diesels (1500hp, 34kts), - 1 x 1 - 12.7/90

Naval service

No significant events.
