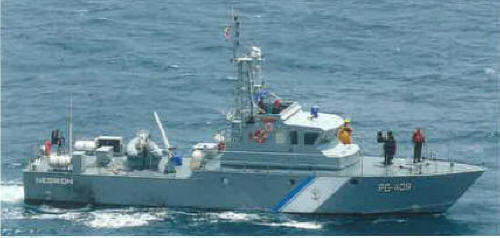

Gavión 2009

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
PG401 Gavión PG402 Alca PG403 Bernacia PG404 Chamán PG405 Cormorán PG406 Colimbo PG407 Fardela PG408 Sumarela PG409 Negrón PG410 Pigargo PG411 Pagaza PG412 Serreta	Halter Marine, New Orleans, USA: PG401-412	1999: PG401-404 2000: PG405-412	none	none	in service (2019): PG401-412

Technical data

Displacement standard, t
Displacement full, t	48
Length, m	24.4
Breadth, m	5.20
Draught, m	1.50
No of shafts	2
Machinery	2 General Motors Detroit Diesel 12V92TA diesels
Power, h. p.	2160
Max speed, kts	25
Fuel, t	diesel oil
Endurance, nm(kts)	1000(15)
Armament	2 x 1 - 12./90, 2 x 1 - 7.6/90
Electronic equipment	Raytheon R1210 radar
Complement	10

Graphics

Project history

Ordered in 1998. Aluminium construction, carry an inspection and rescue dinghy.

Modernizations

None.

Naval service

No significant events.
