SAILFISH early warning submarine (1956)

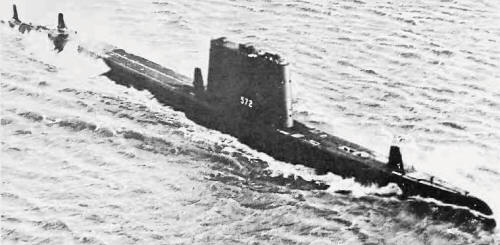

Sailfish 1966

Ships


No Name Yard No Builder Laid down Launched Comm Fate
SSR572, 2.1961- SS572 Sailfish   Portsmouth N Yd, Kittery 8.12.1953 7.9.1955 14.4.1956 stricken 9.1978
SSR573, 3.1961- SS573, 6.1968- AGSS573, 6.1968- SS573 Salmon   Portsmouth N Yd, Kittery 10.3.1954 25.2.1956 25.8.1956 stricken 10.1977


Technical data


Displacement standard, t1990
Displacement normal, t

2625 / 3168

Length, m

106.9

Breadth, m

8.90

Draught, m

5.00

No of shafts

2

Machinery

4 Fairbank Morse diesel-generators, 2 electric motors

Power, h. p.

6000 / 8200

Max speed, kts

19.5 / 10

Fuel, t

diesel oil

Endurance, nm(kts)16000(10) / 120(3)
Armament

6 - 533 Mk 49 TT (bow, 18)

Electronic equipmentBPS-2, BPS-3 radars, BQS-2, BQR-2B sonars, BLR-1 ECM suite
Complement

95

Diving depth operational, m


Standard scale images


<i>Sailfish </i>1963
Sailfish 1963
<i>Sailfish </i>1974
Sailfish 1974
<i>Sailfish </i>1958
Sailfish 1958


Graphics


<i>Sailfish </i> 1966
Sailfish 1966


Project history

These large diesel-electric submarines were built to supplement the fleet boat conversion of the 'Migraine' programme, they remained unsatisfactory in that their surface speed did not suffice to keep up with a carrier task force. Throughout the early 1950s the Bureau of Ships continued to work on more efficient powerplants for radar-picket submarines, pressure-fired steam plants showing particular promise.

Modernizations

1961, both: - BPS-2, BPS-3 radars; + BQG-4 sonar; underwater speed become 14kts

1965, Salmon; 1966, Sailfish: + PUFFS passive sonar

Naval service

Salmon was temporarily used as test and evaluation submarine for the DSRV programme in June 1968 but reverted to attack submarine status when that programme was delayed.
