"H" submarines (SEAWOLF (H1)) (1913 - 1918)

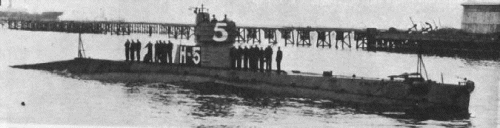

H5 1921

Ships


No Name Yard No Builder Laid down Launched Comm Fate
SS28 H1 (ex-Seawolf) 99 Union Iron Wks, San Francisco 3/1911 6.5.1913 12.1913 wrecked 12.3.1920
SS29 H2 (ex-Nautilus) 100 Union Iron Wks, San Francisco 3/1911 4.6.1913 12/1913 stricken 12.1930
SS30 H3 (ex-Garfish) 59 Moran, Seattle 4/1911 3.7.1913 1.1914 stricken 12.1930
SS147 H4 (ex-АГ.17 [AG.17])   Puget Sound N Yd, Bremerton 5.1918 9.10.1918 10.1918 stricken 2.1931
SS148 H5 (ex-АГ.18 [AG.18])   Puget Sound N Yd, Bremerton 5.1918 24.9.1918 9.1918 stricken 2.1931
SS149 H6 (ex-АГ.19 [AG.19])   Puget Sound N Yd, Bremerton 5.1918 26.8.1918 9.1918 stricken 2.1931
SS150 H7 (ex-АГ.20 [AG.20])   Puget Sound N Yd, Bremerton 5.1918 17.10.1918 10.1918 stricken 2.1931
SS151 H8 (ex-АГ.27 [AG.27])   Puget Sound N Yd, Bremerton 5.1918 14.11.1918 11.1918 stricken 2.1931
SS152 H9 (ex-АГ.28 [AG.28])   Puget Sound N Yd, Bremerton 6.1918 23.11.1918 11.1918 stricken 2.1931


Technical data


Displacement standard, t



Displacement normal, t

358 / 467

Length, m

45.8

Breadth, m

4.80

Draught, m

3.80

No of shafts

2

Machinery

2 NLSE diesels / 2 electric motors

Power, h. p.

950 / 600

Max speed, kts

14 / 10.5

Fuel, t

diesel oil 34

Endurance, nm(kts)2300(11) / 100(5)
Armament

4 - 450 TT (bow, 8)

Complement

25

Diving depth operational, m60


Standard scale images


<i>H2</i> 1913
H2 1913


Graphics


<i>H5</i> 1921
H5 1921


Project history

This class was considered successful, apart from engine problems; H1 and H3 failed their first engine endurance runs. H4-H9 were originally ordered by the Czarist Russian government as AG17-20, 27 and 28, but they were purchased for the US Navy in 1918. This class should not be confused with the Electric Boat-built British and Chilean 'H' class.

Modernizations

None.

Naval service

No significant events.
