SC453 submarine-chaser (1941)





SC453

Ships


No Name Yard No Builder Laid down Launched Comm Fate
PC453, 4.1943- SC453     Fisher Boat Wks, Detroit 9.1940 3.5.1941 8.1941 Coast Guard SAR cutter 11.1945


Technical data


Displacement standard, t

100

Displacement full, t
Length, m

33.5

Breadth, m

5.50

Draught, m

1.80

No of shafts2
Machinery

2 diesels

Power, h. p.

1540

Max speed, kts

17

Fuel, tdiesel oil
Endurance, nm(kts)
Armament

1 x 1 - 76/23 Mk 14, 2 x 1 - 12.7/90, 1 DCT ("Y"-gun)

Electronic equipment

QC sonar

Complement27


Graphics

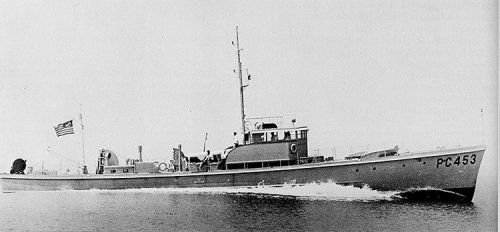

<i>SC453</i>
SC453


Project history

In days of the First World War in the USA the big number of 110ft submarine chasers has been built. Secretary of Navy Roosevelt (future President) participated in development of building of this huge series on small shipyards. When in 1937 leading particulars of ASW ship intended for patrol in coastal areas and on fleet anchoring were defined, Roosevelt has insisted on return to project of twenty years' prescription, which at building was criticised for the small displacement and insufficient endurance. Perhaps, unique concessions for technical progress were a choice of diesels as main engines and installation of sonar.

Under the FY1938 program three experimental chasers under some differing projects (SC449, SC450 and SC453) were built. Latter, designed by the Navy, also has formed a basis for serial chasers. She differed from the predecessor of WWI times in the increased breadth and stronger hull structure with application of steel bracings.

Modernizations

None.

Fate Notes

No significant events.



© Ivan Gogin, 2014
