"PTC" patrol craft (PTC1) (1941 - 1944)





PTC4 1941

Ships


Names Builders Commissioned Losses Transfers Discarding

PTC1 - 12

ELCO, Bayonne: PTC1-12

2 -3/1941: PTC1 - 12

none

United Kingdom, 4 - 7.1941: PTC1 - 12: (MGB82 - 93)

none


Technical data


Displacement standard, t

32

Displacement full, t

40

Length, m

21.3

Breadth, m

6.07

Draught, m

1.37

No of shafts

3

Machinery

3 petrol engines

Power, h. p.

3600

Max speed, kts

45

Fuel, t

petrol

Endurance, nm(kts)



Armament

2 x 2 - 12.7/90, 2 DCT, 2 DCR (24)

Complement

17



Graphics

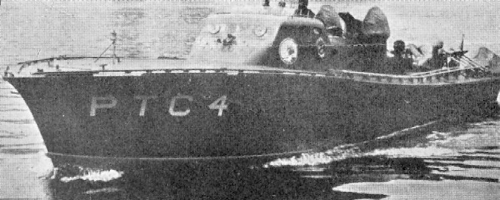

<i>PTC4</i> 1941
PTC4 1941


Project history

PTC boats were built in MTB hulls for ASW service. Wooden hulls, 70ft ELCO design. Additional identical PTC13-36 (built by ELCO), PTC37-66 (built by Trumpy, Gloucester City) and RPC1-50 (built by Miami SB) were built for Soviet Union.

Modernizations

None.

Naval service

: No significant events.
