PHILADELPHIA protected cruiser (1890)

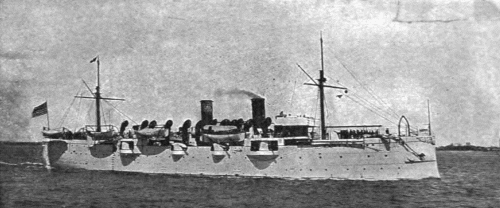

  Philadelphia 1890s

Ships


No Name Yard No Builder Laid down Launched Comm Fate
C4 Philadelphia 257 Cramp, Philadelphia 22.3.1888 7.9.1889 28.7.1890 receiving ship 5.1904


Technical data


Displacement normal, t

4324

Displacement full, t5305
Length, m

102.1

Breadth, m

14.8

Draught, m

5.84 mean

No of shafts

2

Machinery

2 HTE, 4 cylindrical boilers

Power, h. p.

9000

Max speed, kts

19

Fuel, t

coal 1031

Endurance, nm(kts)6800(10)
Armour, mmsteel - deck: 64 with 102mm slopes, CT: 76
Armament

12 x 1 - 152/30 Mk III, 4 x 1 - 57/40 Hotchkiss Mk I/II, 4 x 1 - 47/40 Hotchkiss Mk I/Driggs-Schroeder Mk I, 2 x 1 - 37/20 Hotchkiss Mk I

Complement

384



Standard scale images


similar sister-ship<i> Baltimore</i> 1890
similar sister-ship Baltimore 1890


Graphics


  <i>Philadelphia </i>1890s
  Philadelphia 1890s


Project history

Authorized under the Act of 3.3.1887. Originally rigged as three-masted schooner without head gear and similar to Baltimore in protection. Philadelphia's 12 152mm guns were mounted as in the re-armed Baltimore except that the eight midships guns were in sponsons.

Ship protection

Protective deck was 64mm flat with 102mm slopes amidships, CT had 76mm sides.

Modernizations

None.

Naval service

Sent to Puget Sound Navy Yard for extensive repairs in August 1902, Philadelphia was housed over as a receiving ship at the above yard in 1904 and so remained, apart from a period as a prison ship, until stricken in 1926.
