NAVYPEDIA


Claud Jones 1971

Ships

No	Name	Yard No	Builder	Laid down	Launched	Comm	Fate
DE1033	Claud Jones	840	Avondale, Westwego	1.6.1957	27.5.1958	10.2.1959	to Indonesia 12.1974 (Mongisidi)
DE1034	John R. Perry	841	Avondale, Westwego	1.10.1957	29.7.1958	5.5.1959	to Indonesia 2.1973 (Samadikun)
DE1035	Charles Berry	905	American SB, Lorain	29.10.1958	17.3.1959	25.11.1959	to Indonesia 1.1974 (Martadinata)
DE1036	McMorris	906	American SB, Lorain	5.11.1958	26.5.1959	4.3.1960	to Indonesia 12.1974 (Ngurah Rai)

Technical data

Displacement standard, t	1314
Displacement full, t	1916
Length, m	91.8 wl 95.1 oa
Breadth, m	11.6
Draught, m	3.90
No of shafts	1
Machinery	4 Fairbanks-Morse diesels
Power, h. p.	8700
Max speed, kts	21.5
Fuel, t	diesel oil
Endurance, nm(kts)	7000(12)
Armament	2 x 1 - 76/50 Mk 34, 2 x 3 - 324 Mk 32 TT, 2 x 24 - 178 Hedgehog Mk 11 ASWRL, 1 DCR
Electronic equipment	SPS-10, SPS-6C, SPG-52 radars, SQS-4 sonar, WLR-1 ECM suite
Complement	171

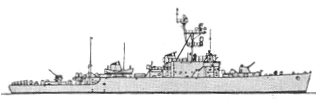

Standard scale images

Graphics

Project history

Given the relatively high cost of a Dealey, these were an attempt to produce a minimum ocean escort, consonant with ASW requirements and with mobilization considerations. Diesel power (with two shafts) was therefore chosen, with speed limited to 22kts; weapons were reduced to a pair of fixed Hedgehogs, a lightweight ASW torpedo-dropping system and a single stern depth-charge track. The result was widely disliked, and a call for renewed construction of a more satisfactory escort led back to the Bronsteins and their successors.

Modernizations

1961, Charles Berry, McMorris: + 2 x 6 - 210 Terne III ASWRL

Naval service

No significant events.
