NEW YORK armoured cruiser (1893)
New York 1898
Ships
| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| ACR2, 7.1920- CA2 | New York, 2.1911- Saratoga, 12.1917- Rochester | 268 | Cramp, Philadelphia | 30.9.1890 | 2.12.1891 | 1.8.1893 | stricken 10.1938 |
Technical data
| Displacement normal, t | 8200 |
|---|---|
| Displacement full, t | 9021 |
| Length, m | 117.0 |
| Breadth, m | 19.8 |
| Draught, m | 7.26 mean |
| No of shafts | 2 |
| Machinery | 4 VTE, 8 cylindrical boilers |
| Power, h. p. | 16000 |
| Max speed, kts | 20 |
| Fuel, t | coal 1290 |
| Endurance, nm(kts) | 4000(10) |
| Armour, mm | nickel steel - belt: 102, deck: 152 - 64, barbettes: 254 - 127, gunhouses: 140, casemates: 102, CT: 190 |
| Armament | 2 x 2 - 203/37 Mk III, 2 x 1 - 203/37 Mk III, 12 x 1 - 102/40 Mk III/IV/V/VI, 8 x 1 - 57/45 Driggs-Schroeder Mk I, 4 x 1 - 37/40 Driggs-Schroeder heavy Mk I, 3 - 360 TT (2 beam, 1 bow) |
| Complement | 566 |
Standard scale images

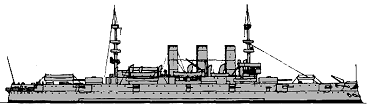

New York 1895
Graphics
New York 1898
Project history
Authorized under the Act of 7.9.1888. The first US armoured cruiser as the Maine, originally ACR1, was better classified as a small battleship. The New York was a handsome flush-decked ship. The fore and aft twin 203mm had shallow barbettes, and the other two were to port and starboard amidships in shields with base rings. The 102mm guns were on the main deck, the four forward and four after guns being in sponsons.
Ship protection
Main 102mm belt protected machinery only. Armoured deck over citadel was 76mm at flat part and connected with lower edge of main belt by 152mm slopes. Thickness of main deck was 64mm at ship ends. Main twin gun turrets had 140mm sides and shallow 254mm barbettes. Ammunition tubes were protected by 127mm steel. Guns amidships were protected by shields and 51mm base rings. 102mm guns had local 102mm protection.
Modernizations
(1905 - 1909): all old armament was changed to 2 x 2 - 203/45 Mk VI, 10 x 1 - 127/50 Mk VI, 8 x 1 - 76/50 Mk III/V/VI. New 203mm turrets were protected by 165mm Krupp steel and had 152-102mm barbettes. Old boilers were replaced by 12 Babcock & Wilcox with higher funnels.
by 1919: - 2 x 1 - 127/50, 8 x 1 - 76/50; + 2 x 1 - 76/52 Mk X
1927: 8 boilers and 2 funnels were removed
Naval service
New York was renamed Saratoga 16.2.1911 and Rochester 1.12.1917, and after an active and varied career did not finally decommission until 29.4.1933. She was stricken 28.10.1938 at Philippines and was scuttled to avoid capture by the Japanese.
