PENSACOLA screw corvette (1861)

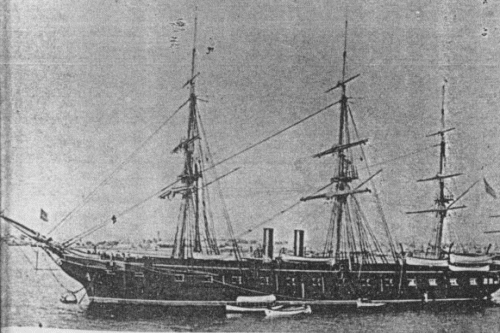

Pensacola 1886

Ships


No Name Yard No Builder Laid down Launched Comm Fate
  Pensacola   Pensacola N Yd / Washington N Yd   15.8.1859 16.9.1861 TS 11.1898, receiving ship 7.1901


Technical data


Displacement normal, t

3000

Displacement full, t
Length, m

70.3 pp

Breadth, m

13.6

Draught, m5.66
No of shafts

1

Machinery

1 4-cyl Dickerson HDA, 2 water-tube boilers

Power, h. p.
Max speed, kts

8.8

Fuel, t

coal

Endurance, nm(kts)
Armament

1 x 1 - 279/15 Dahlgren SB, 16 x 1 - 229/15 Dahlgren SB

Complement

~300



Standard scale images


nearly sister-ship <i>Hartford </i>1860
nearly sister-ship Hartford 1860


Graphics


<i>Pensacola </i>1886
Pensacola 1886


Project history

Large corvette classified as sloop of Hartford group. Building of Pensacola was unusual process in any case. She was launched 15.8.1859 and commissioned without engines 5.12.1859 and sailed for Washington N Yd for installing machinery. Again Pensacola was commissioned 16.9.1861 but engines were incomplete and tried until 3.1.1862. As result of experimental engines she had worst machinery in US Navy of that time and was one of slowest US naval ships.

Modernizations

1862: + 6 x 1 - 229/15 Dahlgren SB, 1 x 1 - 163/22 100pdr Parrott rifled

~1865: engines were replaced by 2-cyl HRCR, max speed was 8.5kts

1878: boilers were replaced by 4 new, ship became 2-funneled.

Naval service

Pensacola served as TS since 11.1898 and in July 1901 became a receiving ship. She was stricken 23.12.1911.
