MONTGOMERY protected cruisers (1893 - 1894)

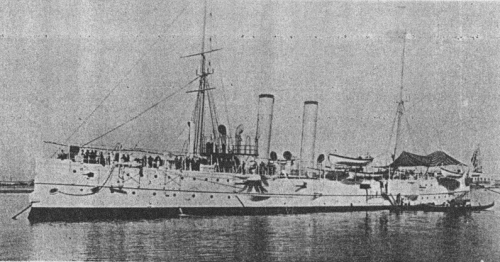

Marblehead

Ships


No Name Yard No Builder Laid down Launched Comm Fate
C9 Montgomery, 3.1918- Anniston   Columbian Iron Wks, Baltimore 2/1890 5.12.1891 21.6.1894 torpedo experimental ship 1908-1914, stricken 8.1919
C10 Detroit   Columbian Iron Wks, Baltimore 2/1890 28.10.1891 20.7.1893 stricken 7.1910
C11, 7.1920- PG27 Marblehead   City Point Iron Wks, Boston 10/1890 11.8.1892 2.4.1894 Naval Militia TS 3.1910-4/1917, gunboat 7.1920, stricken 8.1921


Technical data


Displacement normal, t

2094

Displacement full, t

2235

Length, m

82.1

Breadth, m

11.3

Draught, m

4.44 mean

No of shafts

2

Machinery

2 VTE, 6 cylindrical boilers

Power, h. p.

5400

Max speed, kts

17

Fuel, t

coal 340

Endurance, nm(kts)
Armour, mm

steel - deck: 13 with 13mm slopes, CT: 51

Armament

9 x 1 - 127/40 Mk II, 6 x 1 - 57/45-50 Driggs-Schroeder Mk I/II, 2 x 1 - 37/40 Driggs-Schroeder heavy Mk I, 3 - 450 TT (1 bow, 2 beam)

Complement

274



Standard scale images


<i>Montgomery </i>1891
Montgomery 1891


Graphics


<i>Marblehead</i>
Marblehead


Project history

Authorized under the Act of 7.9.1888. Slow and weak ships with no effective deck protection. One 127mm gun was on the upper deck forward and the rest in main deck sponsons.

Ship protection

Protective deck was 13mm at flat and slopes. CT had 51mm sides.

Modernizations

1899, all: - 3 - 450 TT

1916-1918, Montgomery: - 9 x 1 - 127/40, 6 x 1 - 57/45-50, 2 x 1 - 37/40; + 8 x 1 - 102/50 Mk IX; boilers were replaced by 6 Almy.

1916-1918, Marblehead: - 9 x 1 - 127/40, 6 x 1 - 57/45-50, 2 x 1 - 37/40; + 8 x 1 - 102/50 Mk IX

Naval service

Montgomery served as a torpedo experimental ship 1908-1914. Marblehead was loaned to Naval Militia in 1910-1917.
