screw corvette HARTFORD (1859)





Hartford

Ships


No Name Yard No Builder Laid down Launched Comm Fate
  Hartford   Boston N Yd 1/1858 22.11.1858 27.5.1859 TS 10.1899, station ship 10.1912


Technical data


Displacement normal, t

2550

Displacement full, t
Length, m

68.6 pp

Breadth, m

13.4

Draught, m

7.09 (hold depth)

No of shafts

1

Machinery

1 2-cyl HDA, 2 water-tube boilers

Power, h. p.

696ihp

Max speed, kts

9.5

Fuel, t

coal

Endurance, nm(kts)
Armament

20 x 1 - 229/15 Dahlgren SB

Complement

310



Standard scale images


<i>Hartford </i>1860
Hartford 1860


Graphics

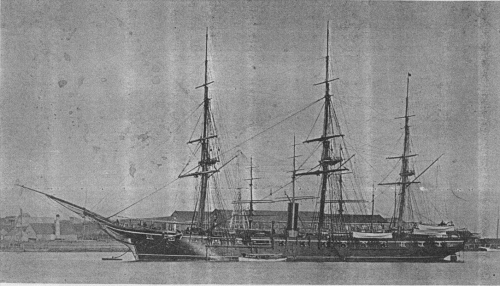

<i>Hartford</i>
Hartford


Project history

Most famous USN large sloop, Flagship of Admiral Farragut. Sail area was up to 3440 m2 with additional sails.

Modernizations

by 1862: + 1 x 1 - 107/24 30pdr Parrott rifled, 2 x 1 - 93/22 20pdr Parrott rifled

1863: - 2 x 1 - 229/15; + 2 x 1 - 163/22 100pdr Parrott rifled

by 1882, was armed with 16 x 1 - 229/15 Dahlgren SB, 1 x 1 - 203/15 converted rifled Dahlgren SB; VCE engine was installed.

1880s-1890s: + 13 x 1 - 127/40 Mk II/III

Naval service

Hartford was converted to TS for midshipmen in 1899 and in October 1912 transferred to Charleston for harbour use. She was finally decommissioned in August 1926 but preserved and classified as relic in October 1945. She foundered at berth 20.11.1956.
