ATLANTA AA cruisers (1941 - 1946)





  Flint 1944 Many thanks to Pascal Wojtalik for correction of information on this page.

Ships


No Name Yard No Builder Laid down Launched Comm Fate
CL51 Atlanta 168 Federal, Kearny 22.4.1940 6.9.1941 24.12.1941 sunk 13.11.1942
CL52 Juneau 169 Federal, Kearny 27.5.1940 25.10.1941 14.2.1942 sunk 13.11.1942
CL53, 3.1949- CLAA53 San Diego 1479 Bethlehem, Quincy 27.3.1940 26.7.1941 10.1.1942 stricken 3.1959
CL54, 2.1949- CLAA54 San Juan 1480 Bethlehem, Quincy 15.5.1940 6.9.1941 28.2.1942 stricken 3.1959
CL95, 3.1949- CLAA95 Oakland 5386 Bethlehem, San Francisco 13.7.1941 23.10.1942 17.7.1943 stricken 3.1959
CL96, 3.1949- CLAA96 Reno 5387 Bethlehem, San Francisco 12.8.1941 23.12.1942 28.12.1943 stricken 3.1959
CL97, 3.1949- CLAA97 Flint (ex-Spokane) 5388 Bethlehem, San Francisco 23.10.1942 25.1.1944 31.8.1944 stricken 9.1965
CL98, 3.1949- CLAA98 Tucson 5389 Bethlehem, San Francisco 23.11.1942 3.9.1944 3.2.1945 stricken 6.1966
CL119, 3.1949- CLAA119 Juneau 520 Federal, Kearny 15.9.1944 15.7.1945 15.2.1946 stricken 11.1959
CL120, 3.1949- CLAA120 Spokane 521 Federal, Kearny 15.11.1944 22.9.1945 17.5.1946 test ship AG191 4.1966
CL121, 3.1949- CLAA121 Fresno 522 Federal, Kearny 12.2.1945 5.3.1946 27.11.1946 stricken 4.1965


Technical data


Displacement standard, t

CL51 - 54, 95 - 98: 6590

CL119 - 121: 6700

Displacement full, t

CL51 - 54, 95 - 98: 8100

CL119 - 121: 8450

Length, m

161.6 wl 165.1 oa

Breadth, m

16.2

Draught, m

6.25

No of shafts

2

Machinery

2 sets Westinghouse geared steam turbines, 4 Babcock & Wilcox boilers

Power, h. p.

75000

Max speed, kts

32.5

Fuel, t

oil 1360

Endurance, nm(kts)8500 (15)
Armour, mm

CL51 - 54: belt: 95, bulkheads: 95, magazines: 95 - 28, deck: 32, turrets: 32 - 25, CT: 63

CL95 - 98, 119 - 121: belt: 95, bulkheads: 95, magazines: 95 - 28, deck: 32, turrets: 32 - 25

Armament

CL51, 52: 8 x 2 - 127/38 Mk 12, 3 x 4 - 28/75 Mk 1, 2 x 4 - 533 TT, 2 DCR

CL53, 54: 8 x 2 - 127/38 Mk 12, 4 x 4 - 28/75 Mk 1, 8 x 1 - 20/70 Mk 4, 2 x 4 - 533 TT, 2 DCR

CL95: 6 x 2 - 127/38 Mk 12, 8 x 2 - 40/56 Mk 1.2, 14 x 1 - 20/70 Mk 4, 2 x 4 - 533 TT

CL96 - 98: 6 x 2 - 127/38 Mk 12, 8 x 2 - 40/56 Mk 1.2, 16 x 1 - 20/70 Mk 4, 2 x 4 - 533 TT

CL119 - 121: 6 x 2 - 127/38 Mk 29, 6 x 4 - 40/60 Mk 2, 4 x 2 - 40/60 Mk 1, 8 x 2 - 20/70 Mk 24

Electronic equipment

CL51 - 54: QCJ sonar

CL95 - 98, 119 - 121: SC, SG, 2x Mk 12.22 radars

Complement

623



Standard scale images

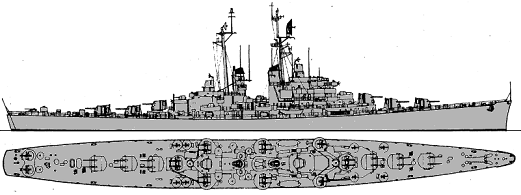

<i>Fresno </i>1963
Fresno 1963

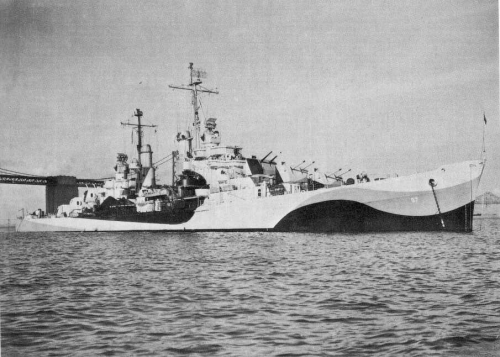

<i>San Diego</i> 1942
San Diego 1942

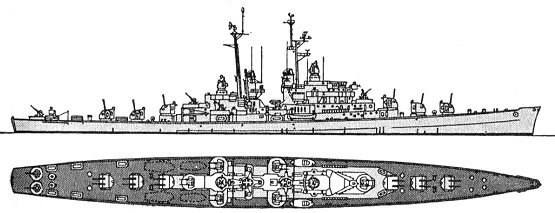

<i>Juneau</i> 1946
Juneau 1946


Graphics

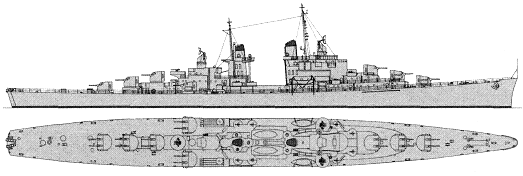

  <i>Flint</i> 1944 <i>Many thanks to Pascal Wojtalik for correction of information on this page.</i>
  Flint 1944 Many thanks to Pascal Wojtalik for correction of information on this page.


Project history

The second London conference limited displacement of cruisers by 8000t. Originally it was planed to create the ship within these limits (8000t and 152mm guns), but for some reasons in the end of 1937 the priority has been returned to creation of a smaller cruiser with 127mm artillery intended for actions together with destroyers. The preliminary project of 6000t ship armed by 127mm guns in twin mounts was ready by July, 1938. Armour protection ensured an immune zone under fire of 130mm guns between 30 and 80 cables at a 60° relative bearing. The armoured belt has been included into hull construction and had no plating under itself.

Ships were considerable overloaded: on lead-ship CL51 it was above 700t, and designed 35kts speed was never reached. 4 ships were built on original design (CL51-54), following 4 were completed on modified design: two 127mms mounts (and 28mm MGs) were replaced by 40mm Boforses. Last three ships had no TTs and re-designed superstructures.

Ship protection

Main belt abreast machinery was 4.2m high. It was 95mm thick on 16mm STS plating. There were narrow belts abreast magazines. Fore belt was 28mm thick but aft belt had 95-46mm thickness. Belt was closed by 95mm bulkheads. Armoured deck over main belt was 32mm.

Modernizations

early 1942, Atlanta, Juneau: + 1 x 4 - 28/75 Mk 1

mid-1942, Atlanta, Juneau: - 2 DCR, sonar; + SC, SG, 2x Mk 4 radars

mid-1942, San Diego, San Juan: - 2 DCR, sonar; + SC, SG, 2x Mk 12.22 radars

12/1943, San Diego, San Juan: - 4 x 4 - 28/75; + 1 x 4 - 40/56 Mk 1.2, 3 x 2 - 40/56 Mk 1.2, 7 x 1 - 20/70 Mk 4

1945, San Juan: + 2 x 2 - 40/56 Mk 1.2

4/1945, Oakland: - 6 x 2 - 40/56, 14 x 1 - 20/70, 2 x 4 - 533 TT; + 4 x 4 - 40/56 Mk 1.2, 8 x 2 - 20/70 Mk 4

1945, Tucson: - 2 x 4 - 533 TT

1/1946, San Diego: 8 x 2 - 127/38 Mk 29, 1 x 4 - 40/60 Mk 2, 3 x 2 - 40/60 Mk 1, 15 x 1 - 20/70 Mk 10, 2 x 4 - 533 TT, SC, SG, 2x Mk 12.22 radars

1/1946, San Juan: 8 x 2 - 127/38 Mk 29, 1 x 4 - 40/60 Mk 2, 5 x 2 - 40/60 Mk 1, 15 x 1 - 20/70 Mk 10, 2 x 4 - 533 TT, SC, SG, 2x Mk 12.22 radars

1/1946, Oakland: 6 x 2 - 127/38 Mk 29, 4 x 4 - 40/60 Mk 2, 2 x 2 - 40/60 Mk 1, 8 x 2 - 20/70 Mk 24, SC, SG, 2x Mk 12.22 radars

1/1946, Reno, Flint: 6 x 2 - 127/38 Mk 29, 8 x 2 - 40/60 Mk 1, 16 x 1 - 20/70 Mk 10, 2 x 4 - 533 TT, SC, SG, 2x Mk 12.22 radars

1/1946, Tucson: 6 x 2 - 127/38 Mk 29, 8 x 2 - 40/60 Mk 1, 16 x 1 - 20/70 Mk 10, SC, SG, 2x Mk 12.22 radars

Naval service

Atlanta 12.11.1942 was badly damaged in battle at Guadalcanal by a torpedo of Japanese destroyer Akatsuki and gunfire of Japanese destroyers Akatsuki, Inazuma, Ikazuchi and frindly fire of cruiser San Francisco; next morning she was sunk. Juneau 12.11.1942 was badly damaged in battle at Guadalcanal by a torpedo and gunfire of Japanese ships and 13.11.1942 S of Guadalcanal sunk by a torpedo of Japanese submarine I26. Reno 4.11.1944 was damaged by a torpedo of Japanese submarine I41 and was under repair till the end of war.

Many thanks to Pascal Wojtalik for correction of information on this page.
