110-ft "ISLAND" boats (FARALLON) (1986 - 1992)

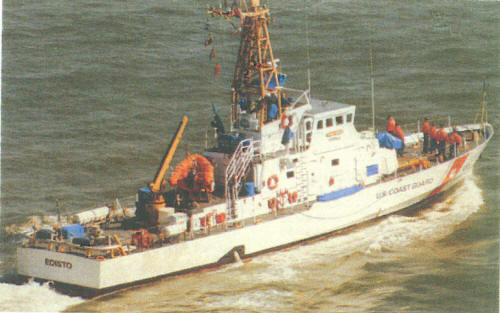

Edisto 1999
Ships
| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| WPB1301 | Farallon | Bollinger, Lockport | 27.8.1985 | 2.1986 | in service (2019) | ||
| WPB1302 | Manitou | Bollinger, Lockport | 9.10.1985 | 2.1986 | stricken 2007 | ||
| WPB1303 | Matagorda | Bollinger, Lockport | 15.12.1985 | 4.1986 | stricken 2007 | ||
| WPB1304 | Maui | Bollinger, Lockport | 13.1.1986 | 5.1986 | in service (2019) | ||
| WPB1305 | Monhegan | Bollinger, Lockport | 15.2.1986 | 6.1986 | stricken 2007 | ||
| WPB1306 | Nunivak | Bollinger, Lockport | 15.3.1986 | 7.1986 | stricken 2007 | ||
| WPB1307 | Ocracoke | Bollinger, Lockport | 12.4.1986 | 8.1986 | in service (2019) | ||
| WPB1308 | Vashon | Bollinger, Lockport | 10.5.1986 | 8.1986 | stricken 2007 | ||
| WPB1309 | Aquidneck | Bollinger, Lockport | 14.6.1986 | 9.1986 | in service (2019) | ||
| WPB1310 | Mustang | Bollinger, Lockport | 11.7.1986 | 8.1986 | in service (2019) | ||
| WPB1311 | Naushon | Bollinger, Lockport | 22.8.1986 | 10.1986 | in service (2019) | ||
| WPB1312 | Sanibel | Bollinger, Lockport | 3.10.1986 | 11.1986 | in service (2019) | ||
| WPB1313 | Edisto | Bollinger, Lockport | 21.11.1986 | 1.1987 | in service (2019) | ||
| WPB1314 | Sapelo | Bollinger, Lockport | 8.1.1987 | 2.1987 | in service (2019) | ||
| WPB1315 | Matinicus | Bollinger, Lockport | 26.2.1987 | 4.1987 | stricken 2016 | ||
| WPB1316 | Nantucket | Bollinger, Lockport | 17.4.1987 | 6.1987 | stricken 2018 | ||
| WPB1317 | Attu | Bollinger, Lockport | 5.1987 | 4.12.1987 | 5.1988 | stricken 2007 | |
| WPB1318 | Baranof | Bollinger, Lockport | 6.1987 | 15.1.1988 | 5.1988 | in service (2019) | |
| WPB1319 | Chandeleur | Bollinger, Lockport | 7.1987 | 19.2.1988 | 6.1988 | in service (2019) | |
| WPB1320 | Chincoteague | Bollinger, Lockport | 8.1987 | 25.3.1988 | 8.1988 | stricken 2014 | |
| WPB1321 | Cushing | Bollinger, Lockport | 9.1987 | 20.4.1988 | 8.1988 | stricken 2018, to Ukraine 2019 (Слов'янск [Slovyansk]) | |
| WPB1322 | Cuttyhunk | Bollinger, Lockport | 10.1987 | 3.6.1988 | 10.1988 | in service (2019) | |
| WPB1323 | Drummond | Bollinger, Lockport | 11.1987 | 8.7.1988 | 10.1988 | stricken 2016, to Ukraine 2019 (Старобiльськ [Starobilsk]) | |
| WPB1324 | Key Largo (ex-Largo) | Bollinger, Lockport | 1.1988 | 12.8.1988 | 12.1988 | in service (2019) | |
| WPB1325 | Metomkin | Bollinger, Lockport | 2.1988 | 16.9.1988 | 1.1989 | stricken 2007 | |
| WPB1326 | Monomoy | Bollinger, Lockport | 3.1988 | 21.10.1988 | 12.1988 | in service (2019) | |
| WPB1327 | Orcas | Bollinger, Lockport | 4.1988 | 25.11.1988 | 4.1989 | in service (2019) | |
| WPB1328 | Padre | Bollinger, Lockport | 3.1988 | 6.1.1989 | 2.1989 | stricken 2007 | |
| WPB1329 | Sitkinak | Bollinger, Lockport | 7.1988 | 10.2.1989 | 3.1989 | in service (2019) | |
| WPB1330 | Tybee | Bollinger, Lockport | 8.1988 | 17.3.1989 | 5.1989 | in service (2019) | |
| WPB1331 | Washington | Bollinger, Lockport | 9.1988 | 21.4.1989 | 1989 | in service (2019) | |
| WPB1332 | Wrangell | Bollinger, Lockport | 10.1988 | 26.5.1989 | 6.1989 | in service (2019) | |
| WPB1333 | Adak | Bollinger, Lockport | 11.1988 | 30.6.1989 | 11.1989 | in service (2019) | |
| WPB1334 | Liberty | Bollinger, Lockport | 12.1988 | 4.8.1989 | 9.1989 | in service (2019) | |
| WPB1335 | Anacapa | Bollinger, Lockport | 1.1989 | 8.9.1989 | 1.1990 | in service (2019) | |
| WPB1336 | Kiska | Bollinger, Lockport | 3.1989 | 13.10.1989 | 12.1989 | in service (2019) | |
| WPB1337 | Assateague | Bollinger, Lockport | 4.1989 | 17.11.1989 | 1.1990 | stricken 2017 | |
| WPB1338 | Grand Isle | Bollinger, Lockport | 6.1990 | 12.1990 | stricken 2015 | ||
| WPB1339 | Key Biscayne | Bollinger, Lockport | 7.1990 | 4.1991 | stricken 2015 | ||
| WPB1340 | Jefferson Island | Bollinger, Lockport | 8.1990 | 4.1991 | stricken 2014, to Georgia 2016 (დიოსკურია [Dioskuria]) | ||
| WPB1341 | Kodiak Island | Bollinger, Lockport | 9.1990 | 8.2.1991 | 6.1991 | stricken 2015 | |
| WPB1342 | Long Island | Bollinger, Lockport | 10.1990 | 19.3.1991 | 8.1991 | stricken 2015, to Costa Rica (Juan Rafael Mora Poras) | |
| WPB1343 | Bainbridge Island | Bollinger, Lockport | 12.1990 | 19.4.1991 | 6.1991 | stricken 2014 | |
| WPB1344 | Block Island | Bollinger, Lockport | 1.1991 | 7.1991 | stricken 2014 | ||
| WPB1345 | Staten Island | Bollinger, Lockport | 2.1991 | 8.1991 | stricken 2014, to Georgia 2016 (ოჩამჩირე [Ochamchire]) | ||
| WPB1346 | Roanoke Island | Bollinger, Lockport | 3.1991 | 9.1991 | stricken 2015, to Costa Rica (General Jose M. Canas) | ||
| WPB1347 | Pea Island | Bollinger, Lockport | 4.1991 | 11.1991 | stricken 2014 | ||
| WPB1348 | Knight Island | Bollinger, Lockport | 6.1991 | 6.9.1991 | 12.1991 | stricken 2015 | |
| WPB1349 | Galveston Island | Bollinger, Lockport | 7.1991 | 15.11.1991 | 1.1992 | stricken 2018, to Costa Rica (Rodrigo Carrazo) |
Technical data
| Displacement standard, t | WPB1301-1317: 117 WPB1318-1337: 107 |
|---|---|
| Displacement full, t | WPB1301-1317: 165 WPB1318-1337: 155 WPB1338-1349: 153 |
| Length, m | 33.5 |
| Breadth, m | 6.40 |
| Draught, m | 2.23 max |
| No of shafts | 2 |
| Machinery | WPB1301-1337: 2 Alco-Paxman Valenta 16RP200-1CM diesels WPB1338-1349: 2 Caterpillar 3516 diesels |
| Power, h. p. | WPB1301-1337: 5820 WPB1338-1349: 5460 |
| Max speed, kts | WPB1301-1337: 29.7 WPB1338-1349: 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3380(8) |
| Armament | WPB1301-1337: 1 x 1 - 20/70 Mk 67, 2 x 1 - 12.7/90 WPB1338-1349: 1 x 1 - 25/75 Mk 38 Bushmaster, 2 x 1 - 12.7/90 |
| Electronic equipment | SPS-64(v)1 radar |
| Complement | 16 |
Standard scale images
Farallon 1990
Graphics
Edisto 1999
Project history
15 craft were ordered in 1984 from Marine Power & Equipment, Seattle, but the award was contested by Bollinger and reassigned. Later boats were ordered directly from Bollinger. Modified Vosper-Thornycroft design, with increased top-hamper. Steel hull with aluminium deck and superstructure. Have fin stabilizers.
Modernizations
1990-1994, all earlier units: - 1 x 1 - 20/70; + 1 x 1 - 25/75 Mk 38 Bushmaster
2003-2006, Manitou, Matagorda, Monhegan, Nunivak, Vashon, Attu, Metomkin, Padre: were lengthened (37.5m oa, 128/174t, new SSR radar, stern ramp for 7m SRP RIB).
2007-2013, many: - SPS-64(v)1 radar; + SPS-73 radar
Naval service
No significant events.
