BERTHOLF cutters (2008-)

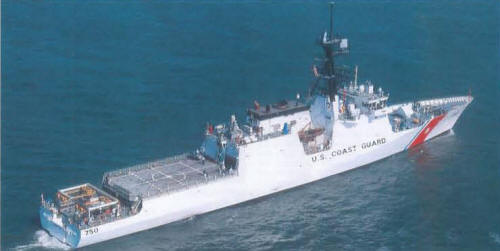

Bertholf 2008
Ships
| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| WMSL750 | Bertholf | 4911 | Huntington Ingalls, Pascagoula | 29.3.2005 | 29.11.2006 | 4.8.2008 | in service (2019) |
| WMSL751 | Waesche | 4912 | Huntington Ingalls, Pascagoula | 11.9.2006 | 12.7.2008 | 7.5.2010 | in service (2019) |
| WMSL752 | Stratton | 4913 | Huntington Ingalls, Pascagoula | 20.7.2009 | 17.7.2010 | 31.3.2012 | in service (2019) |
| WMSL753 | Hamilton | 4914 | Huntington Ingalls, Pascagoula | 5.9.2012 | 10.8.2013 | 6.12.2014 | in service (2019) |
| WMSL754 | James | 4915 | Huntington Ingalls, Pascagoula | 17.5.2013 | 3.5.2014 | 8.8.2015 | in service (2019) |
| WMSL755 | Munro | 4916 | Huntington Ingalls, Pascagoula | 5.11.2014 | 12.9.2015 | 1.4.2017 | in service (2019) |
| WMSL756 | Kimball | 4917 | Huntington Ingalls, Pascagoula | 4.3.2016 | 17.12.2016 | 4.3.2017 | in service (2019) |
| WMSL757 | Midgett | 4918 | Huntington Ingalls, Pascagoula | 27.1.2017 | 22.11.2017 | 2019 | building (2019) |
| WMSL758 | Stone | 4919 | Huntington Ingalls, Pascagoula | 2018 | 2019 | 2020 | building (2019) |
| WMSL759 | 4920 | Huntington Ingalls, Pascagoula | 2019 | 2020 | 2021 | ordered (2019) | |
| WMSL760 | 4921 | Huntington Ingalls, Pascagoula | 2020 | 2021 | 2022 | ordered (2019) |
Technical data
| Displacement standard, t | 3200 |
|---|---|
| Displacement full, t | 4500 |
| Length, m | 118.9 pp 127.4 oa |
| Breadth, m | 16.5 |
| Draught, m | 6.40 |
| No of shafts | 2 |
| Machinery | CODAG: 1 General Electric LM-2500 gas turbine + 2 MTU 20V1163 diesels |
| Power, h. p. | 29500 + 19310 = 48810 |
| Max speed, kts | 29 |
| Fuel, t | diesel/gas turbine oil |
| Endurance, nm(kts) | 12000(9) |
| Armament | 1 x 1 - 57/70 Mk 110 Mod. 0, 1 x 6 - 20/76 Mk 15 Phalanx, 4 x 1 - 12.7/90, 1 - 2 helicopters (1 MH-60 or 2 MH-65 or 4 ScanEagle UAV) |
| Electronic equipment | TRS-3D/16-ES, SPS-73, SPQ-9B, Furuno radars, EOSS Mk 20 E/O director, Star Safire III E/O detector, SLQ-32(v)2 ECM suite, 2x Mk 36 SRBOC / Mk 53 Nulka decoy RL, SICS CCS |
| Complement | 116 |
Standard scale images

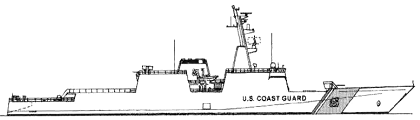

Bertholf 2010
Graphics
Bertholf 2008
Project history
Deepwater program, later named as National Security Cutter. Have a double helicopter hangsr able to carry 1 MH-60 or 2 MH-65 helicopters, can also carry up to 4 UAVs. Steel construction, conventional monohull design with few stealth features. A dual 13m stern ramp is fitted to launch and recovery OTH-IV 7.6m and LRI 10.7m rescue and inspection RIBs. Typically each ship carries two 7m and one 11m boats. All ships have weight and space allocation for an ASW capability.
Modernizations
None.
Naval service
No significant events.
