18 de Julio 1975

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate

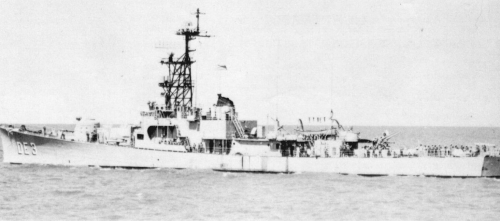

18 de Julio (ex-Dealey)	DE3	321	Bath Iron Wks, USA	15.12.1952	8.11.1953	3.6.1954 // 28.7.1972	deleted 1991

Technical data

Displacement standard, t	1450
Displacement full, t	1914
Length, m	93.9 wl 95.9 oa
Breadth, m	11.2
Draught, m	4.04 hull 5.27 over sonar
No of shafts	1
Machinery	1 set De Laval geared steam turbines, 2 Foster Wheeler boilers
Power, h. p.	20000
Max speed, kts	25
Fuel, t	oil 360
Endurance, nm(kts)	4400(11)
Armament	2 x 2 - 76/50 Mk 33, 2 x 3 - 324 Mk 32 TT, 1 DCR
Electronic equipment	SPS-5D, SPS-6E, 2x SPG-34 radars, SQS-29 sonar, WLR-1 ECM suite
Complement	173

Standard scale images

Graphics

Project history

Former USN lead-of-class Dealy destroyer escort.

Modernizations

1980: - SPS-5D radar; + 2x nav. radars

Naval service

No significant events.
