COLONIA patrol boat (1944/1945)





Colonia 1975

Ships


Names Builders Completed Losses Transfers Discarding

AR1, 1975- PR10 Colonia

USA

1944 // 1945: AR1

None

None

1988: PR10



Technical data


Displacement standard, t

25

Displacement full, t

34

Length, m

19.2

Breadth, m

4.60

Draught, m

1.20

No of shafts

2

Machinery

2 Hall Scott Defender diesels

Power, h. p.

1260

Max speed, kts

33.5

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

2 x 2 - 12.7/90

Electronic equipmentnone
Complement

8



Graphics

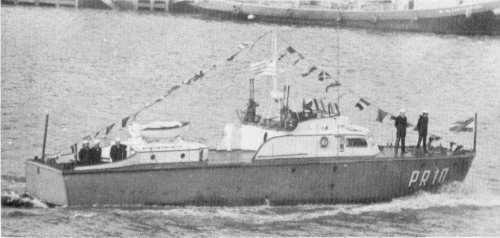

<i>Colonia </i>1975
Colonia 1975


Project history

Former USN 63ft AVR class boat. Reclassified from the SAR to patrol in 1975.

Modernizations

None.

Naval service

No significant events.
