GENICHESK inshore minesweeper (1985/1996)

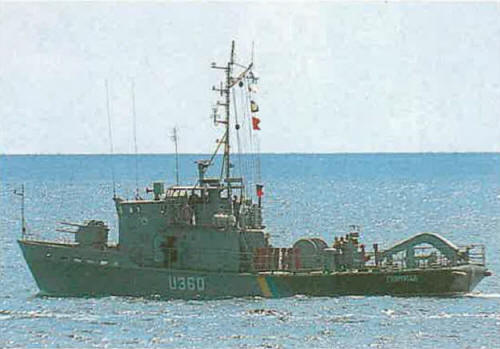

Genichesk 2003
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Генiчеськ [Genichesk] (ex-РТ-214 [RT-214]) | U360, 2018- M360 | 152 | Sredne-Nevskiy, Pontonnyy, USSR | 7/1985 // 27.3.1996 | captured by Russia 24.3.2014, returned 19.4.2014, in service (2020) |
Technical data
| Displacement standard, t | 88 |
|---|---|
| Displacement full, t | 97 |
| Length, m | 26.1 |
| Breadth, m | 5.40 |
| Draught, m | 1.38 |
| No of shafts | 2 |
| Machinery | 2 3D12 diesels |
| Power, h. p. | 600 |
| Max speed, kts | 12 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 350(10) |
| Armament | 1 x 2 - 25/82 2M-3M, 1 x 7 - 55 MRG-1 GL, 2 DCR (12), IT-1 Neva-1 USV or MT-3U or OPT-1 mechanical or SEMT-1 magnetic or AT-2 acoustic minesweeping gear |
| Electronic equipment | Kivach radar, MG-7 Braslet sonar |
| Complement | 10 |
Standard scale images
Genichesk 2015
Graphics
Genichesk 2003
Project history
Former Soviet project 1258 inshore minesweeper.
Modernizations
None.
Naval service
24.3.2014 Genichesk was captured by Russian troops on Lake Donuzlav but returned 19.4.2014.
