BALAKLAVA patrol boat (2012)
Balaklava 2013
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
BG200 Балаклава [Balaklava] |
More, Feodosia: BG200 |
2012: BG200 |
none |
none |
in service (2020): BG200 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 43 |
| Length, m | 26.8 |
| Breadth, m | 5.10 |
| Draught, m | 1.30 |
| No of shafts | 2 |
| Machinery | 2 MTU 10V2000 M93 diesels |
| Power, h. p. | 3040 |
| Max speed, kts | 38 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 500(15) |
| Armament | 1 x 1 - 12.7/79 |
| Electronic equipment | radar |
| Complement | 9 |
Graphics

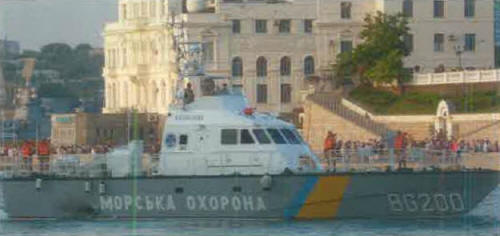

Balaklava 2013
Project history
Coast Guard. Domestic project 58130. Building of planned second boat was suspended and later abandoned.
Modernizations
None.
Naval service
No significant events.
