RIVNE tank landing ship (1971/1996)

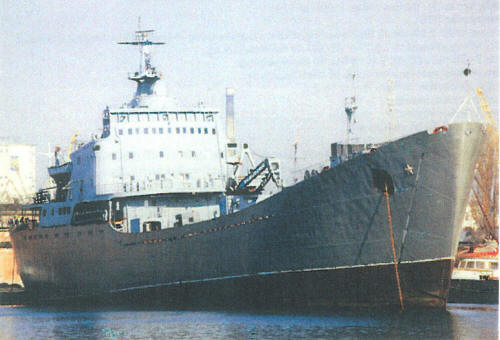

Rivne 1997

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Рiвне [Rivne] (ex-Илья Азаров [Ilya Azarov], ex-БДК-104 [BDK-104]) U762 300 Yantar', Kaliningrad, USSR 17.10.1969 31.3.1970 10.6.1971 // 10.1.1996 auxiliary 1997


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Рiвне [Rivne] (ex-Илья Азаров [Ilya Azarov], ex-БДК-104 [BDK-104]) U762 300 Yantar', Kaliningrad, USSR 17.10.1969 31.3.1970 10.6.1971 // 10.1.1996 auxiliary 1997

Technical data


Displacement standard, t

3040
Displacement normal, t

4650
Length, m

113.1
Breadth, m

15.6
Draught, m

4.50
No of shafts

2
Machinery

2 58A-3 diesels
Power, h. p.

9000
Max speed, kts

16.5
Fuel, t

diesel oil
Endurance, nm(kts)

4800(16)
Armament

3 x 2 Strela-3 SAM (24 9M36), 1 x 2 - 57/75 ZIF-31B, 2 x 40 - 122 MS-73 Grad M RL
Military load

20 medium tanks or 47 AFV or 52 trucks, 440 troops
Electronic equipment

Don radar
Complement

69


Standard scale images


<i>Rivne </i>2000
Rivne 2000


Graphics


<i>Rivne </i>1997
Rivne 1997


Project history

Former Soviet project 1171 (group 3) tank landing ship.

Modernizations

None.

Naval service

No significant events.
