KRAMATORSK small landing ship (air-cushion) (1988-1991/1995, 1993-2001)

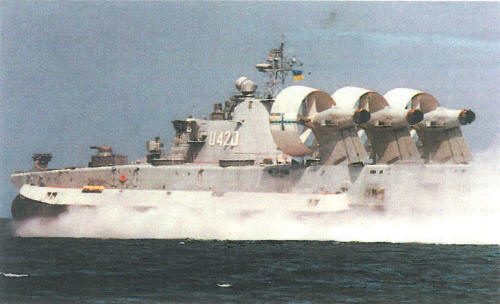

Donetsk 2000
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Донецьк [Donetsk] (ex-МДК-100 [MDK-100]) | U420 | 304 | More, Feodosia | 26.6.1993 | stricken 7.2008 | ||
| Iван Богун [Ivan Bogun] (ex-МДК-100 [MDK-100]) | U421 | 305 | More, Feodosia | 1993 | 9.12.2000 | 3.2.2001 | to Greece 2.2001 (Ιθάκη [Ithaki]) |
| Краматорськ [Kramatorsk] (ex-МДК-57 [MDK-57]) | U422 | 301 | More, Feodosia | 30.12.1988 // 31.12.1995 | stricken 6.1999 | ||
| Горлiвка [Gorlivka] (ex-МДК-93 [MDK-93]) | U423 | 303 | More, Feodosia | 30.12.1991 // 31.12.1995 | to Greece 3.2001 (Κέρκυρα [Kerkira]) | ||
| Артемiвськ [Artemivsk] (ex-МДК-123 [MDK-123]) | U424 | 302 | More, Feodosia | 30.12.1989 // 31.12.1995 | stricken 11.2000 |
100 - 1000 t displacement/ BRT tonnage vessels
Technical data
| Displacement standard, t | 500 |
|---|---|
| Displacement normal, t | 550 |
| Length, m | 57.3 |
| Breadth, m | 25.6 |
| Draught, m | 1.60 / 0.00 |
| No of shafts | 3 air propellers / 2 air propellers for lift |
| Machinery | 3 MT-70 gas turbines / 2 NO-10 gas turbines |
| Power, h. p. | 30000 / 20000 |
| Max speed, kts | 63 |
| Fuel, t | gas turbine oil |
| Endurance, nm(kts) | 300(55) |
| Armament | 1 x 2 Igla-1M SAM (32), 2 x 6 - 30/54 AK-630M, 2 x 22 - 140 MS-227 Ogon' RL |
| Military load | 3 tanks or 8 AFV's or 360 troops or 150 t of cargo or 78 mines |
| Electronic equipment | Lazur', MR-123-02 Vympel, Ekran-1 radars, MP-411 ECM suite |
| Complement | 27 |
Standard scale images
Donetsk 2000
Graphics
Donetsk 2000
Project history
Former Soviet project 12332 amphibious craft, air-cushion.
Modernizations
None.
Naval service
No significant events.
