KOSTYANTYN OLSHANSKYY tank landing ship (1985/1996)

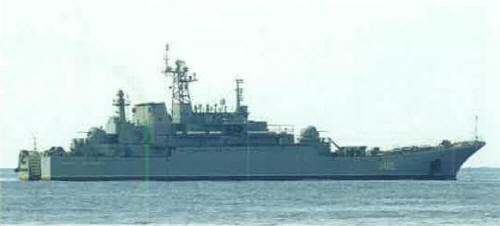

Kostyantin Olshanskyy 2008

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Костянтин Ольшанский [Kostyantin Olshanskiy] (ex-Константин Ольшанский [Konstantin Olshanskiy], ex-БДК-56 [BDK-56]) U402 775/21 Stocznia Północna, Gdańsk, Poland     1985 // 10.1.1996 captured by Russia 24.3.2014


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Костянтин Ольшанский [Kostyantin Olshanskiy] (ex-Константин Ольшанский [Konstantin Olshanskiy], ex-БДК-56 [BDK-56]) U402 775/21 Stocznia Północna, Gdańsk, Poland     1985 // 10.1.1996 captured by Russia 24.3.2014

Technical data


Displacement standard, t

2768

Displacement normal, t

4012

Length, m

pr. 775, 775/II: 112.5

pr. 775/III: 112.6

Breadth, m

15.0

Draught, m

4.26

No of shafts

2

Machinery

2 Zgoda-Sulzer 16ZVB40/48 diesels

Power, h. p.

19200

Max speed, kts

17.6

Fuel, t

diesel oil

Endurance, nm(kts)

4000(12)

Armament

2 x 4 Strela-3 or Igla SAM (16), 2 x 2 - 57/50 AK-725, 2 x 40 - 122 MS-73 Grad-M RL (320)

Military load

10 main battle tanks, 340 troops or 500 t of cargo

Electronic equipment

MR-302 Rubka, Don or Mius, MR-103 Bars radars

Complement

98



Standard scale images


<i>Kostyantin Olshanskyy </i>2000
Kostyantin Olshanskyy 2000


Graphics


<i>Kostyantin Olshanskyy </i>2008
Kostyantin Olshanskyy 2008


Project history

Former Soviet project 775/II tank landing ship.

Modernizations

None.

Naval service

Kostyantin Olshanskiy 24.3.2014 was captured by Russian troops on Donuzlav Lake. She never entered Russian Navy and Russian Government invited Ukraine to take her back, but later, when Ukraine initiated civil war in Donbass, Russian Naval Staff announced that Ukrainian ships will be returned when war in Donbass ends.
