KIROVOGRAD small landing ships (1971/1996)

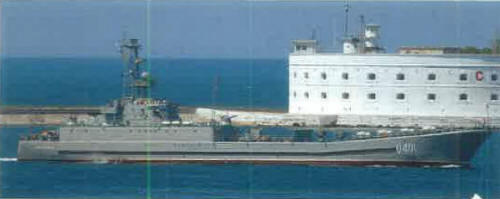

Kirovograd 2013

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Кiровоград [Kirovograd] (ex-МДК-137 [MDK-137], ex-СДК-137 [SDK-137]), 7.2016- Юрiй Олефiренко [Yuriy Olefirenko] U401, 2018- L401 773/2 Stocznia Północna, Gdańsk, Poland 21.4.1970 31.12.1970 31.5.1971 // captured by Russia 21.3.2014, returned 19.4.2014, in service (2020)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Кiровоград [Kirovograd] (ex-МДК-137 [MDK-137], ex-СДК-137 [SDK-137]), 7.2016- Юрiй Олефiренко [Yuriy Olefirenko] U401, 2018- L401 773/2 Stocznia Północna, Gdańsk, Poland 21.4.1970 31.12.1970 31.5.1971 // captured by Russia 21.3.2014, returned 19.4.2014, in service (2020)

Technical data


Displacement standard, t

920

Displacement normal, t

1192

Length, m

81.3

Breadth, m

9.30

Draught, m

2.30

No of shafts

2

Machinery

2 40DM diesels

Power, h. p.

4400

Max speed, kts

16.3

Fuel, t

diesel oil

Endurance, nm(kts)

3000(12)

Armament

4 x 4 Strela-2M or Strela-3M SAM (16), 2 x 2 - 30/71 AK-230, 2 x 18 - 140 WM-18 RL (180)

Military load

6 medium tanks, 180 troops or 240 t of cargo

Electronic equipment

Donets, MR-104 Rys' radars, 4x PK-10 Smely decoy RL

Complement

45



Standard scale images


<i>Kirovograd </i>2000
Kirovograd 2000


Graphics


<i>Kirovograd </i>2013
Kirovograd 2013


Project history

Former Soviet project 773 medium (later- small) landing ship

Modernizations

None.

Naval service

Kirovograd was captured by Russian troops in Crimea 21.3.2014 but returned to Ukraine month later.
