NAVYPEDIA

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comm	Fate
Володимир Великий [Volodimir Velikiy]		01701	Chernomorskiy SBZ, Nikolayev	17.5.2011		2023	building (2020)

Technical data

Displacement standard, t	2500
Displacement full, t	2650
Length, m	112.0
Breadth, m	13.5
Draught, m	3.50
No of shafts	2
Machinery	CODOG: 2 Zoria-Mashproekt gas turbines / 2 Caterpillar diesels
Power, h. p.
Max speed, kts	32
Fuel, t	diesel / gas turbine oil
Endurance, nm(kts)	4000(12)
Armament	2 x 4 MM40 Exocet SSM (8 MM40 Block 3), 1 x 16 Sylver A43 SAM (VLS, 16 Aster-15), 1 x 1 - 76/62 OTO-Melata Compact SR, 2 x 1 - 35/90 Millenium, 2 x 1 - 12.7/79, 2 x 3 - 324 B515 TT (MU90 or A244), 1 helicopter (Ka-27 or NH90)
Electronic equipment	nav., air search, fire control radars, hull-mounted, towed sonars, ECM suite, type 2170 SSTDS torpedo decoy, decoy RL, CCS
Complement	110

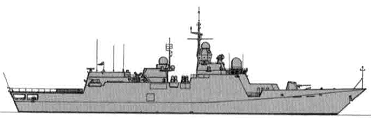

Standard scale images

Project history

Ukrainian project 58250. Originally a class of 10-12, later 6-8 and then 4 ships was planned but only lead ship was really commenced by building. Ship is built very slow due lack of funds. In 2019 building of 32%-completed ship was again suspended.

Modernizations

None.

Naval service

No significant events.
