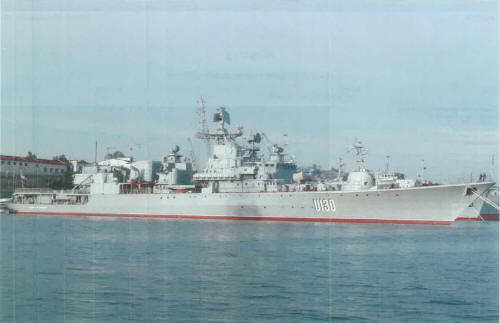

Get'man Sagaydachnyy 2011

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comm	Fate
Гетьман Сагайдачний [Getman Sagaydachnyy] (ex-Киров [Kirov])	U130, 2018- F130	208	Zaliv, Kerch'	5.10.1990	29.3.1992	5.7.1993	in service (2020)
Гетьман Байда Вишневецький [Getman Bayda Vishnevetskiy] (ex-Красный вымпел [Krasnyy Vympel])		209	Zaliv, Kerch'	27.12.1992	---	---	cancelled 1995

Technical data

Displacement standard, t	3274
Displacement full, t	3642
Length, m	123.0
Breadth, m	14.2
Draught, m	4.80 hull 7.30 max
No of shafts	2
Machinery	COGAG: 2 M7N gas turbine units (each consisted of M70 cruising turbine and M8K boost turbine)
Power, h. p.	12000 + 34000 = 46000
Max speed, kts	31
Fuel, t	gas turbine oil
Endurance, nm(kts)	3000(18)
Armament	1 x 2 Osa-MA2 SAM (20 9M33), 1 x 1 - 100/59 AK-100, 2 x 6 - 30/54 AK-630M, 2 x 4 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 1 helicopter (Ka-27PS)
Electronic equipment	MR-750 Fregat-M2, MR-145 Lev-218-100, 4K-33, MR-225 Reyd-M, 2x MR-212/201 Vaygach-U radars, MG-335MS Platina-MS, MGK-345 Bronza, MGS-407 sonars, MI-110KM wake detector, MP-401S Start-S ECM suite, 4x PK-16 decoy RL
Complement	193

Standard scale images

Graphics

Project history

Major redesign of Naval Project 1135/1135M frigate for Border Guard service, with elimination of Metel'/Rastrub missiles in favor of helicopter facility (gunmounts were moved fwd). Ships were laid down for Soviet Navy but completed for Ukraine.

Modernizations

None.

Naval service

No significant events.
