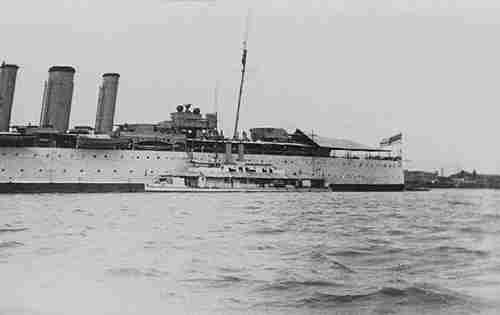

Widgeon beside cruiser Suffolk 1928 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Widgeon	N71	1142	Yarrow, Scotstoun / Shanghai, China		16.4.1904	1904	sold 10.1931

Technical data

Displacement normal, t	195
Displacement full, t
Length, m	48.7
Breadth, m	7.50
Draught, m	1.00
No of shafts	1
Machinery	1 VTE
Power, h. p.	800
Max speed, kts	12.5
Fuel, t	coal 39
Endurance, nm(kts)
Armament	2 x 1 - 57/40 6pdr Hotchkiss Mk I
Complement	35

Standard scale images

Graphics

Project history

Tunnel-screw type. Hull had bullet-proof protection.

Modernizations

None

Naval service

Paid off in December 1914 but was re-commissioned post-war.
