BOUNCER flatiron gunboats (2, 1881)





Bouncer

Ships


Name

No

Yard No

Builder

Laid down

Launched

Comp

Fate

Insolent   203 Pembroke DYd 1880 15.3.1881 1881 gate vessel 1.1918
Bouncer   204 Pembroke DYd 1880 15.3.1881 1881 sold 4.1905


Technical data


Displacement normal, t

265

Displacement full, t
Length, m

26.6

Breadth, m

7.96

Draught, m

1.83 - 1.98

No of shafts

2

Machinery

2 2-cyl HSE, 1 cylindrical boiler

Power, h. p.

230

Max speed, kts

8.5

Fuel, t

coal

Endurance, nm(kts)
Armament

1 x 1 - 254/15 MLR Mk I/II

Complement

30



Graphics

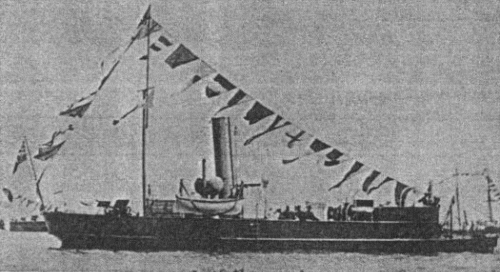

<i>Bouncer</i>
Bouncer


Project history Rendel 'flatiron' gunboats. Modernizations

Rendel 'flatiron' gunboats. Modernizations: None.

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
