"LAKES" whalers (BUTTERMERE) (1939)

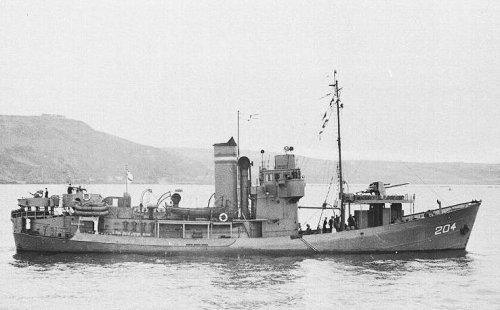

Ellesmere 1941 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Buttermere (ex-Kos XXV) FY205 1062 Smiths Dock, South Bank   30.6.1939 10.1939 to USA 3.1942 - 10.1942 (Buttermere), sold 5.1946
Ellesmere (ex-Kos XXIV) FY204 1061 Smiths Dock, South Bank   17.6.1939 10.1939 sunk 24.2.1945
Grassmere (ex-Kos XXVIII), 1940 - Wastwater FY239 1065 Smiths Dock, South Bank   31.8.1939 11.1939 sold 5.1946
Thirlmere (ex-Kos XXVI) FY206 1063 Smiths Dock, South Bank   5.7.1939 10.1939 sold 5.1946
Ullswater (ex-Kos XXIX) FY252 1074 Smiths Dock, South Bank   31.8.1939 11.1939 sunk 9.11.1942
Windermere (ex-Kos XXVII) FY207 1064 Smiths Dock, South Bank   21.7.1939 11.1939 sold 1947


Technical data


Displacement standard, t

560

Displacement full, t
Length, m48.9
Breadth, m8.46
Draught, m4.65
No of shafts

1

Machinery

1 VTE, 1 cylindrical boiler

Power, h. p.1400
Max speed, kts

13.8

Fuel, t

coal

Endurance, nm(kts)
Armament

1 x 1 - 76/40 12pdr 12cwt QF Mk I/II/V, 1 x 2 - 12.7/62, 1 x 1 - 12.7/62, mechanical minesweeping gear

Complement35


Graphics


<i>Ellesmere</i> 1941 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Ellesmere 1941 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Minesweeping whalers, purchased by Admiralty on the stocks.

Modernizations

1942 - 1943, all survived: - 1 x 1 - 12.7/62; + 1 x 1 - 20/70 Oerlikon Mk II/IV, type 271 (some), type 290 (some) radars

Naval service

Ellesmere was sunk by German submarine U1203 and Ullswater by German MTB.
