GUARDIAN netlayer (1933)





Guardian 1933

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Guardian     Chatham DYd 10.1931 1.9.1932 6.1933 BU 1962


Technical data


Displacement standard, t

2860

Displacement full, t3665
Length, m

103.0

Breadth, m

16.2

Draught, m

4.22 deep load

No of shafts

2

Machinery

2 sets Parsons geared steam turbines, 2 Admiralty 3-drum boilers

Power, h. p.

6500

Max speed, kts

18

Fuel, t

oil 734

Endurance, nm(kts)
Armament

2 x 1 - 102/45 QF Mk V, nets

Complement181


Standard scale images

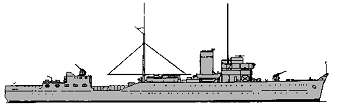

<i>Guardian</i> 1932
Guardian 1932


Graphics

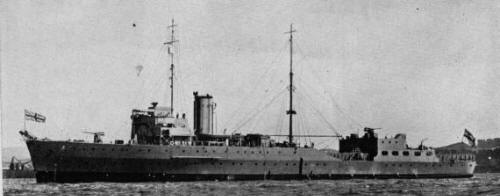

<i>Guardian</i> 1933
Guardian 1933


Project history

First British purpose-built offensive netlayer.

Modernizations

1941 - 1944: - 2 x 1 - 102/45; + 1 x 2 - 102/45 QF Mk XVI, 14 - 20/70 Oerlikon Mk II/IV, radar

Naval service

No significant events.
