   Offa

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate	Modification
Mandate	HA8m G02, H9A		Fairfield, Govan	1914	27.4.1915	8.1915	BU 9.1921	Admiralty design, 1st order (9/1914)
Mons	H2A, G11, G10, G1A, H89		John Brown, Clydebank	9.1914	1.5.1915	7.1915	sold 11.1921	Admiralty design, 1st order (9/1914)
Marmion	HC2, G04		Swan Hunter, Wallsend	1914	28.5.1915	9.1915	collision 21.10.1917	Admiralty design, 1st order (9/1914)
Marne	HA6, G05, HA0		John Brown, Clydebank	9.1914	29.5.1915	8.1915	BU 9.1921	Admiralty design, 1st order (9/1914)
Manners	HA9, G03, HC1		Fairfield, Govan	1914	15.6.1915	9.1915	BU 10.1921	Admiralty design, 1st order (9/1914)
Mystic (ex-Myrtle)	H2C, G16, G3A		Denny, Dumbarton	10.1914	26.6.1915	11.1915	BU 11.1921	Admiralty design, 1st order (9/1914)
Martial	HC3, G06, F77		Swan Hunter, Wallsend	10.1914	1.7.1915	10.1915	BU 5.1921	Admiralty design, 1st order (9/1914)
Maenad	HA7, G26, G27, GA8		Denny, Dumbarton	11.1914	10.8.1915	11.1915	BU 9.1921	Admiralty design, 1st order (9/1914)
Magic (ex-Marigold)	GC0, G01, G0A		White, Cowes	1.1915	10.9.1915	1.1916	BU 9.1921	Admiralty design, 1st order (9/1914)
Mary Rose	HC4, G29		Swan Hunter, Wallsend	1914	8.10.1915	3.1916	sunk 17.10.1917	Admiralty design, 1st order (9/1914)
Menace	H7C, G28, G30, G6A		Swan Hunter, Wallsend	9.1914	9.11.1915	4.1916	BU 5.1921	Admiralty design, 1st order (9/1914)
Moresby (ex-Marlion)	HC1, F02, H27		White, Cowes	1.1915	20.11.1915	4.1916	BU 5.1921	Admiralty design, 1st order (9/1914)
Michael	HC5, G07, HA1		Thornycroft, Woolston	9.1914	19.5.1915	8.1915	BU 9.1921	Thornycroft specials
Milbrook	HC6, G08, HA2		Thornycroft, Woolston	11.1914	12.7.1915	10.1915	BU 9.1921	Thornycroft specials
Minion	HC7, G09, G14, H82		Thornycroft, Woolston	11.1914	11.9.1915	11.1915	BU 11.1921	Thornycroft specials
Munster (ex-Monitor)	H8C, G33, G7A		Thornycroft, Woolston	11.1914	24.11.1915	1.1916	BU 11.1921	Thornycroft specials
Nepean	G18, F03, H44		Thornycroft, Woolston	2.1915	22.1.1916	3.1916	BU 11.1921	Thornycroft specials
Nereus	G19, F12, F33, H21, H37		Thornycroft, Woolston	3.1915	24.2.1916	5.1916	BU 11.1921	Thornycroft specials
Patriot (RCN 1920)	G56, G63		Thornycroft, Woolston	7.1915	20.4.1916	6/1916	BU 1929	Thornycroft specials
Patrician (RCN 1920)	G48, F23, F15, GA1		Thornycroft, Woolston	6/1915	5.6.1916	7/1916	BU 1929	Thornycroft specials
Rapid	G63, G78, G83		Thornycroft, Woolston	8.1915	15.7.1916	8/1916	BU 4.1927	Thornycroft specials
Ready	G71, G87, G84		Thornycroft, Woolston	9.1915	26.8.1916	10/1916	BU 7.1926	Thornycroft specials
Moon	HC8, G12, G11, F69		Yarrow, Scotstoun	9.1914	23.4.1915	6.1915	BU 5.1921	Yarrow specials
Morning Star	HC9, G13, G12, G18, H48		Yarrow, Scotstoun	9.1914	26.6.1915	8.1915	sold 12.1921	Yarrow specials
Mounsey	H0C, G14, HC0, G1A		Yarrow, Scotstoun	9.1914	11.9.1915	11.1915	BU 11.1921	Yarrow specials
Musketeer	H1C, G15, G19, H42		Yarrow, Scotstoun	9.1914	12.11.1915	12.1915	BU 11.1921	Yarrow specials
Relentless	G57, G69		Yarrow, Scotstoun	1915	15.4.1916	5/1916	BU 11.1926	Yarrow specials
Rival	G62, F24, F20, H40		Yarrow, Scotstoun	5/1915	14.6.1916	9/1916	BU 7.1926	Yarrow specials
Mameluke	G11, G27, G26, G02		John Brown, Clydebank	12.1914	14.8.1915	10.1915	BU 9.1921	Admiralty design, 2nd order (early 11.1914)
Mindful	G04, G31, H91		Fairfield, Govan	1914	24.8.1915	11.1915	BU 9.1921	Admiralty design, 2nd order (early 11.1914)
Nessus	G00, G37, G36, G5A		Swan Hunter, Wallsend	1914	24.8.1915	11.1915	collision 8.9.1918	Admiralty design, 2nd order (early 11.1914)
Marvel	G20, G23, GA3		Denny, Dumbarton	1.1915	7.10.1915	12.1915	BU 5.1921	Admiralty design, 2nd order (early 11.1914)
Mischief	G10, G32, GA4		Fairfield, Govan	1914	12.10.1915	12.1915	BU 11.1921	Admiralty design, 2nd order (early 11.1914)
Nonsuch (ex-Narcissus)	G12, G39, G38, GA5		Palmers, Jarrow	1914	8.12.1915	2.1916	BU 5.1921	Admiralty design, 2nd order (early 11.1914)
Negro	G13		Palmers, Jarrow	1914	8.3.1916	6.1916	collision 21.12.1916	Admiralty design, 2nd order (early 11.1914)
Nerissa	G35, F04, F05, H09		Yarrow, Scotstoun	11.1914	9.2.1916	3.1916	BU 11.1921	Yarrow special
Opal	G02, G42, G41		Doxford, Pallion	1915	11.9.1915	4.1916	wrecked 21.1.1918	Admiralty design, 3rd order (late 11.1914)
Ossory	G23, G17, HA5		John Brown, Clydebank	12.1914	9.10.1915	11.1915	BU 11.1921	Admiralty design, 3rd order (late 11.1914)
Nestor	G30		Swan Hunter, Wallsend	1915	9.10.1915	4.1916	sunk 31.5.1916	Admiralty design, 3rd order (late 11.1914)
Ophelia	G03, G57, G58, GA9		Doxford, Pallion	1915	13.10.1915	5.1916	BU 11.1921	Admiralty design, 3rd order (late 11.1914)
Obedient	G25, G40, G39, H88		Scotts, Greenock	1915	6.11.1915	2.1916	BU 11.1921	Admiralty design, 3rd order (late 11.1914)
Opportune	G05, G58, G59		Doxford, Pallion	1915	20.11.1915	6/1916	BU 12.1923	Admiralty design, 3rd order (late 11.1914)
Noble (ex-Nisus)	G09, G38, G37, G9A		A. Stephens, Linthouse	2.1915	25.11.1915	2.1916	BU 11.1921	Admiralty design, 3rd order (late 11.1914)
Onslaught	G22, G41, G40, G8A		Fairfield, Govan	1915	4.12.1915	3.1916	BU 10.1921	Admiralty design, 3rd order (late 11.1914)
Oracle	G27, F08, D46		Doxford, Pallion	1915	23.12.1915	8.1916	BU 10.1921	Admiralty design, 3rd order (late 11.1914)
Obdurate	G26, F06, F07, H50		Scotts, Greenock	1915	21.1.1916	3.1916	BU 11.1921	Admiralty design, 3rd order (late 11.1914)
Nomad	G31		A. Stephens, Linthouse	1915	7.2.1916	4.1916	sunk 31.5.1916	Admiralty design, 3rd order (late 11.1914)
Onslow	G29, F09, F34, H24		Fairfield, Govan	1915	15.2.1916	4.1916	BU 10.1921	Admiralty design, 3rd order (late 11.1914)
Norman	G14, G54, G55, H0A		Palmers, Jarrow	1915	20.3.1916	8.1916	BU 5.1921	Admiralty design, 3rd order (late 11.1914)
Orestes	G33, G61, G60, D56		Doxford, Pallion	1915	21.3.1916	6.1916	BU 10.1921	Admiralty design, 3rd order (late 11.1914)
Nizam	G28, G52, G53, HC6		A. Stephens, Linthouse	2.1915	6.4.1916	6.1916	BU 5.1921	Admiralty design, 3rd order (late 11.1914)
Orford	G38, G59, G61, D70		Doxford, Pallion	1915	19.4.1916	12.1916	BU 10.1921	Admiralty design, 3rd order (late 11.1914)
Nonpareil	G37, G53, G54, D0A		A. Stephens, Linthouse	2.1915	16.5.1916	6.1916	BU 5.1921	Admiralty design, 3rd order (late 11.1914)
Orpheus	G43, F17, F35, H28, GA9		Doxford, Pallion	1915	17.6.1916	9.1916	BU 11.1921	Admiralty design, 3rd order (late 11.1914)
Octavia (ex-Oryx)	G51, F07, F09, G71		Doxford, Pallion	1915	21.6.1916	11.1916	BU 11.1921	Admiralty design, 3rd order (late 11.1914)
Northesk	G15, G83, H21		Palmers, Jarrow	1915	5.7.1916	10.1916	BU 5.1921	Admiralty design, 3rd order (late 11.1914)
North Star	G16, F45, F53		Palmers, Jarrow	1915	9.11.1916	1.1917	sunk 23.4.1918	Admiralty design, 3rd order (late 11.1914)
Nugent	G17, F46, F54, D58		Palmers, Jarrow	1915	23.1.1917	4.1917	BU 5.1921	Admiralty design, 3rd order (late 11.1914)
Napier	G34, GA0		John Brown, Clydebank	3.1915	27.11.1915	1.1916	BU 11.1921	Admiralty design, 4th order (2/1915)
Narwhal	G47, G36, G35, H29		Denny, Dumbarton	4.1915	30.12.1915	3.1916	collision 1919, BU 1920	Admiralty design, 4th order (2/1915)
Nicator	G55, F05, HA4		Denny, Dumbarton	4.1915	3.2.1916	4.1916	BU 5.1921	Admiralty design, 4th order (2/1915)
Narbrough	G39, F11, F02		John Brown, Clydebank	1915	2.3.1916	4.1916	wrecked 12.1.1918	Admiralty design, 4th order (2/1915)
Partridge	G46, G62		Swan Hunter, Wallsend	7.1915	4.3.1916	6.1916	sunk 12.12.1917	Admiralty design, 4th order (2/1915)
Paladin	G40, F18, F14, G73, D1A		Scotts, Greenock	1915	27.3.1916	5.1916	BU 5.1921	Admiralty design, 4th order (2/1915)
Pasley	G54, F22, D42		Swan Hunter, Wallsend	7.1915	15.4.1916	7.1916	BU 5.1921	Admiralty design, 4th order (2/1915)
Observer	G41, G55, G51, D79		Fairfield, Govan	1915	1.5.1916	6.1916	BU 10.1921	Admiralty design, 4th order (2/1915)

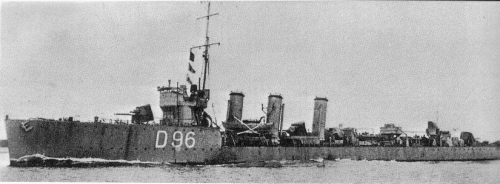

Offa	G45, G56, G57, D96		Fairfield, Govan	1915	7.6.1916	7.1916	BU 10.1921	Admiralty design, 4th order (2/1915)
Parthian	G52, G77, H91		Scotts, Greenock	1915	3.7.1916	9.1916	BU 11.1921	Admiralty design, 4th order (2/1915)
Orcadia	G53, G80, D30		Fairfield, Govan	1915	26.7.1916	9.1916	BU 10.1921	Admiralty design, 4th order (2/1915)
Oriole	G44, F16, D1A, D06		Palmers, Jarrow	1915	31.7.1916	11.1916	BU 5.1921	Admiralty design, 4th order (2/1915)
Norseman	G70, F13, F06, G51, H22		Doxford, Pallion	1915	15.8.1916	11.1916	BU 5.1921	Admiralty design, 4th order (2/1915)
Oriana	G69, F14, F11, H34		Fairfield, Govan	1915	23.9.1916	11.1916	BU 10.1921	Admiralty design, 4th order (2/1915)
Osiris	G68, F26, F31, G72, H30		Palmers, Jarrow	1915	28.9.1916	12.1916	BU 5.1921	Admiralty design, 4th order (2/1915)
Oberon	G80, F27, F36, H35		Doxford, Pallion	1915	29.9.1916	12.1916	BU 5.1921	Admiralty design, 4th order (2/1915)
Pigeon	G59, F21, F18, H67		Hawthorn Leslie, Hebburn	7.1915	3.3.1916	6.1916	BU 5.1921	Admiralty design, 5th order (5/1915)
Plover	G65, G67		Hawthorn Leslie, Hebburn	7.1915	3.3.1916	6.1916	BU 5.1921	Admiralty design, 5th order (5/1915)
Medina (ex-Redmill)	G75, G51, G52, D87		White, Cowes	9.1915	8.3.1916	6.1916	BU 5.1921	Admiralty design, 5th order (5/1915)
Pelican	G58, F10, HA8		Beardmore, Dalmuir	6.1915	18.3.1916	5.1916	BU 11.1921	Admiralty design, 5th order (5/1915)
Petard	G66, F20, F32, G29, GA7		Denny, Dumbarton	7.1915	24.3.1916	5.1916	BU 5.1921	Admiralty design, 5th order (5/1915)
Penn	G50, F19, F16, G74		John Brown, Clydebank	6.1915	8.4.1916	5.1916	BU 10.1921	Admiralty design, 5th order (5/1915)
Medway (ex-Medora, ex-Redwing)	G76, F01, G2A		White, Cowes	11.1915	19.4.1916	8.1916	BU 5.1921	Admiralty design, 5th order (5/1915)
Plucky	G67, G68, GA6, D2A		Scotts, Greenock	1915	21.4.1916	7.1916	BU 5.1921	Admiralty design, 5th order (5/1915)
Peyton	G72, G66, H96		Denny, Dumbarton	7.1915	2.5.1916	6.1916	BU 5.1921	Admiralty design, 5th order (5/1915)
Pellew	G64, H98		Beardmore, Dalmuir	6.1915	8.5.1916	6.1916	BU 5.1921	Admiralty design, 5th order (5/1915)
Peregrine	G60, G65, H94		John Brown, Clydebank	6.1915	29.5.1916	7.1916	BU 11.1921	Admiralty design, 5th order (5/1915)
Prince	G77, G43, G42, F92		A. Stephens, Linthouse	7.1915	26.7.1916	9.1916	BU 5.1921	Admiralty design, 5th order (5/1915)
Portia	G73, G84, HA6		Scotts, Greenock	1915	10.8.1916	10.1916	BU 5.1921	Admiralty design, 5th order (5/1915)
Pylades	G78, F28, F19, G62, H97		A. Stephens, Linthouse	7.1915	28.9.1916	12.1916	BU 5.1921	Admiralty design, 5th order (5/1915)
Pheasant	G74, G89		Fairfield, Govan	10.1915	23.10.1916	11.1916	sunk 1.3.1917	Admiralty design, 5th order (5/1915)
Phoebe	G82, F53, F55, D59		Fairfield, Govan	1915	20.11.1916	12.1916	BU 11.1921	Admiralty design, 5th order (5/1915)

Technical data

Displacement normal, t	Admiralty design: 1025 Thornycroft specials: 985 Yarrow specials: 895
Displacement full, t	Admiralty design: 1250 Thornycroft specials: 1130 Yarrow specials: 1008
Length, m	Admiralty design: 83.4 Thornycroft specials: 83.7 Yarrow specials: 82,2
Breadth, m	Admiralty design: 8.20 Thornycroft specials: 8.40 Yarrow specials: 7.90
Draught, m	2.60
No of shafts	Admiralty design, Thornycroft specials: 3 Yarrow specials: 2
Machinery	Admiralty design: 3 Parsons or Brown-Curtis steam turbines, 3 Yarrow boilers Manners, Mandate, Mary Rose, Menace: 3 sets Parsons or Brown-Curtis geared steam turbines, 3 Yarrow boilers Magic, Moresby: 3 sets Parsons geared steam turbines, 3 White-Forster boilers Medina, Medway: 3 Parsons steam turbines, 3 White-Forster boilers Noble, Nizam, Nomad, Nonpareil: 3 Parsons or Brown-Curtis steam turbines, 3 Babcock & Wilcox boilers Thornycroft specials: 3 Parsons steam turbines, 3 Yarrow boilers Yarrow specials: 2 Brown-Curtis steam turbines, 3 Yarrow boilers
Power, h. p.	Admiralty design: 25000 Thornycroft specials: 26500 Yarrow specials: 23000
Max speed, kts	Admiralty design: 34 Thornycroft and Yarrow specials: 35
Fuel, t	Admiralty design: oil 266 Thornycroft specials: oil 254 Yarrow specials: oil 228
Endurance, nm(kts)
Armament	3 x 1 - 102/40 QF Mk IV, (1 - 2) x 1 - 40/39 2pdr QF Mk II, 2 x 2 - 533 TT
Complement	80

Standard scale images

Graphics

Project history

The improved variant of L type destroyers. Destroyers were built by various yards and had differences in appearance. So, Mansfield, Mentor, Mastiff, Meteor, Miranda, Minos, Manly, Moon, Morning Star, Mauncey, Musketeer, Nerissa, Relentless and Rival were equipped with two-shafts machinery and first two were four-funnelled.

Twenty more 'M' class were ordered in September 1914, 16 of them to the Admiralty standard design but without the cruising turbines (to accelerate delivery - except in Fairfield, Swan Hunter and Fairfield boats). Another improvement was to put No 2 102mm gun on a 'bandstand' as in the 'L' class. The doubling on the stempiece fitted as an emergency measure to the early 'M' class was now made standard to facilitate ramming of U-boats, but in the form of a single casting. The Yarrow 'specials' were similar to the Miranda but were 0.3m longer on the waterline and had raked stems and sloping sterns. The only other variants built thereafter were Thornycroft 'specials', which resembled the Admiralty boats but had flat-sided funnels and higher freeboard. In the later Admiralty-designed boats the stem was raked and the bows were given more flare to improve seakeeping. Machinery was non-standard, with geared-turbines in a few, triple screws in most, and twin screws in some. In July 1916 the Admiralty restored order to a chaotic situation by ordering that all 3-shaft destroyers building were to be listed as Admiralty 'M' class and future 2-shaft boats would be Admiralty 'R's; as a result Redmill and Redwing became Medina and Medora (renamed Medway two weeks later). Although there were some complaints about poor finish they proved sturdy craft and gave good value in four hard years of war. Because of hard driving and particularly because their hulls had not been galvanized they were worn out by 1919 and very few survived the wholesale scrappings in 1921. In all 90 were built, 79 Admiralty boats, and 11 'specials'.

Modernizations

Some destroyers after commission: + 2 - 356 TT (beam).

Naval service

Marmion collided with destroyer Tirade off Lerwick 21.10.1917, Mary Rose was sunk by German cruisers Brummer and Bremse off Norwegian coast 17.10.1917, Negro collided with leader Hoste in North sea 21.12.1916, and Nessus with cruiser Amphitrite in North sea 8.9.1918. Nomad and Nestor were lost in action at Jutland 31.5.1916. North Star was sunk by gunfire of German ships at Zeebrugge 23.4.1918. Partridge 12.12.1917 became a victim of German destroyers off Norwegian coast. Pheasant was mined off Orkneys 1.3.1917. Opal and Narbrough wrecked off Scapa Flow 21.1.1918 and 12.1.1918 respectively. Narwhal collided with other ship, stood afloat but never repaired and sold.
