J & G Thomson 27-knots destroyers, 1893 - 94 follow up order (ROCKET) (3, 1895)





Shark

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Rocket   269 J & G Thomson, Clydebank 14.2.1894 14.8.1894 7.1895 sold 4.1912
Shark   270 J & G Thomson, Clydebank 14.2.1894 22.9.1894 7.1895 sold 7.1911
Surly P30, D3A, D82 271 J & G Thomson, Clydebank 14.2.1894 10.11.1894 7.1895 sold 3.1920


Technical data


Displacement normal, t280
Displacement full, t

325

Length, m

62.2 oa 61.0 pp

Breadth, m

5.97

Draught, m

2.06

No of shafts

2

Machinery

2 4-cyl VTE, 4 Normand boilers

Power, h. p.

4100

Max speed, kts

27

Fuel, t

coal 57

Endurance, nm(kts)3000(10)
Armament

1 x 1 - 76/40 12pdr 12cwt QF Mk I, 5 x 1 - 57/40 6pdr Hotchkiss Mk I, 2 x 1 - 450 TT (4)

Complement

58

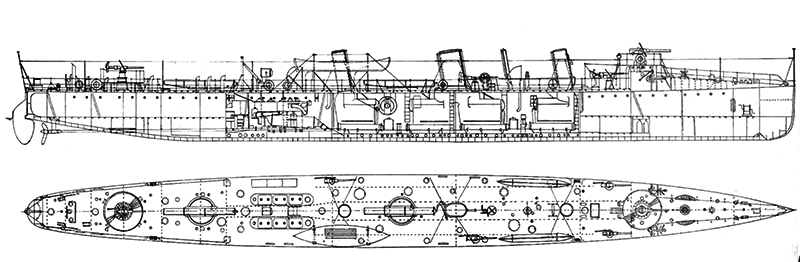

Standard scale images


<i>Shark </i>1895
Shark 1895

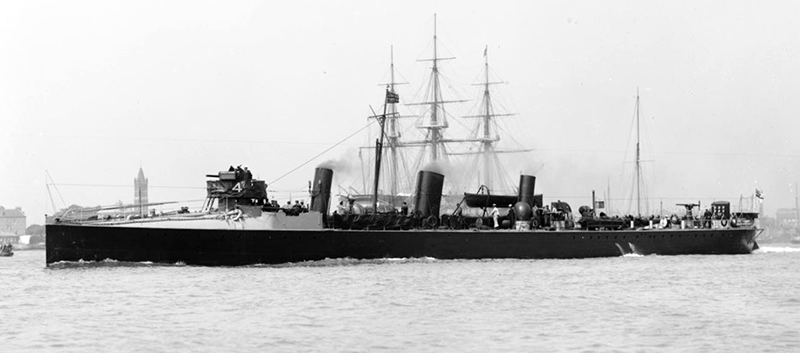

Graphics


<i>Surly</i>
Surly
<i> Shark</i>
Shark


Project history

Before the Havock had completed it was decided to order another six destroyers from Thornycroft and Yarrow. Another nine were ordered from other builders making up, a few months later, the 1893/94 Programme. Apart from a slight increase in size the main difference was that the gun armament was increased by 2 57mm guns. The first six (the Thornycroft and Yarrow boats) had a bow tube fitted, but it was found to throw up clouds of spray in anything except a flat calm, had a bad effect on seakeeping and was soon removed.

These vessels were built with great speed by the Clydeside yard.

Modernizations

1901, Surly, Rocket: - 1 x 1 - 450 TT

1910, Rocket: - 3 x 1 - 57/40

9/1915, Surly: + 2 DCR

Naval service

No significant events.
