Hawthorn Leslie 30-knots destroyers, 1899 order (GREYHOUND) (3, 1902)





Greyhound 1906

Ships


Name

No

Yard No

Builder

Laid down

Launched

Comp

Fate

Greyhound P01, D59, D44, H43 377 Hawthorn Leslie, Hebburn 18.7.1899 6.10.1900 1.1902 sold 6.1919
Racehorse P15, D66, D71 378 Hawthorn Leslie, Hebburn 23.10.1899 8.11.1900 3.1902 sold 3.1920
Roebuck D53, D67, D72 379 Hawthorn Leslie, Hebburn 2.10.1899 4.1.1901 3.1902 BU 1919


Technical data


Displacement normal, t

385

Displacement full, t

430

Length, m

65.4 oa 64.0 pp

Breadth, m

6.43

Draught, m

3.96

No of shafts

2

Machinery

2 4-cyl VTE, 4 Yarrow boilers

Power, h. p.

6100

Max speed, kts

30

Fuel, t

coal 92

Endurance, nm(kts)

3000(10)

Armament

1 x 1 - 76/40 12pdr 12cwt QF Mk I, 5 x 1 - 57/40 6pdr Hotchkiss Mk I, 2 x 1 - 450 TT (4)

Complement

58



Graphics

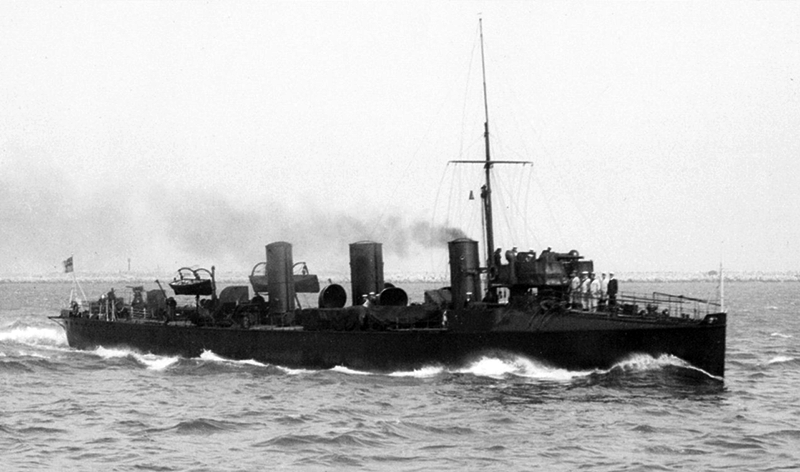

  <i>Greyhound</i>
  Greyhound

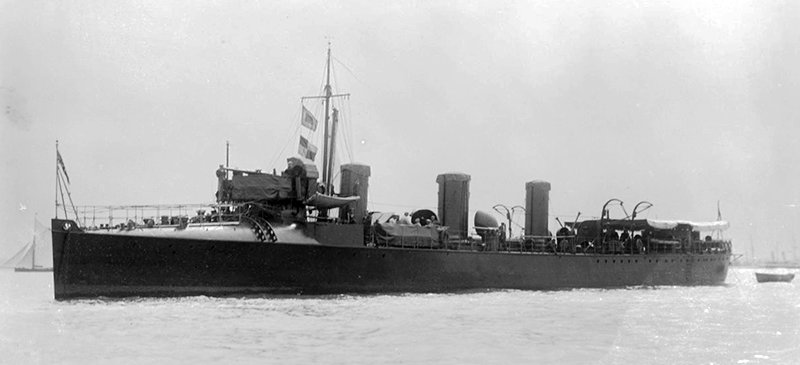

<i>Greyhound</i> 1906
Greyhound 1906

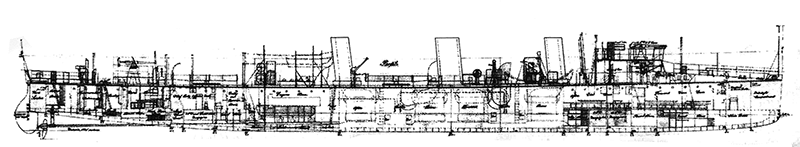

<i>Roebuck</i> 1902
Roebuck 1902


Project history

The successful trials of the first destroyers, particularly Daring, showed that higher speeds than the Admiralty had at first thought possible could be obtained, and in 1894 Thornycroft, Yarrow and Laird were all asked to submit designs for destroyers capable of 30kts, though at that stage orders could not be placed immediately. The first orders went to Thornycroft and Laird, and later other firms produced their own designs and built to them. Yarrow, however, thanks to conflicts with the Admiralty over their 27 knotter destroyers, did not receive any more destroyer orders from the Admiralty for several years, and concentrated on building for foreign navies instead.

As with the 27-knotters all the firms built to their own designs, the only common feature being the complement of 63 and the standard armament of 1 76mm and 5 57mm guns, plus 2 450mm TT. All except Thornycroft used triple expansion engines, whilst Thornycroft continued with their four cylinder compounds. Hulls were lengthened and the machinery was more powerful than the 27-knotters, but fundamentally the 30-knotters were only enlarged versions of the earlier destroyers.

As with the 27-knotters the high trial speeds were never achieved in service, or even in subsequent trials. Sea speed was more often around the 25kts mark, if that. The light structure of these destroyers caused some trouble with leakage and fractures, though in fact it stood up remarkably well to the strains of wartime service between 1914 and 1918 when these by then elderly vessels were mainly used for coastal patrol work. Many had their funnels raised in an attempt to minimize smoke and cinders at deck level.

Though quite a few of these vessels were delayed in their entrance into the service by difficulties in reaching the contract speed, more delay was caused with the later groups of vessels by the severe labour troubles in the late 1890s in the shipbuilding trades.

These ships were slightly altered development of Mermaid.

Modernizations

1916-1917, all: + 2 DCR

Naval service

No significant events.
