ISTER 4th rate screw frigates (1866)

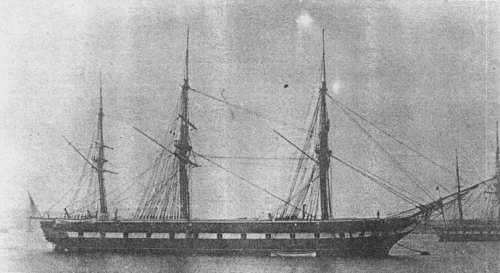

Endymion 1865

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Ister     Devonport DYd 8.11.1860 --- --- cancelled 12.1864
Endymion     Deptford DYd 26.10.1860 18.11.1865 9.1866 hulk 1885
Blonde     Woolwich DYd 10.9.1860 --- --- cancelled 12.1863
Astrea     Devonport DYd 21.10.1861 --- --- cancelled 12.1863
Dartmouth     Woolwich DYd 6.11.1860 --- --- cancelled 12.1864


Technical data


Displacement normal, t

3197

Displacement full, t
Length, m

73.2 pp

Breadth, m

14.6

Draught, m

5.26 hold depth

No of shafts

1

Machinery

sails + rectangular boilers, 1 2-cyl HSE

Power, h. p.

Endymion: 1620ihp

Max speed, kts

Endymion: 11.3

Fuel, t

coal

Endurance, nm(kts)



Armament

22 x 1 - 163/18 32pdr SBML, 8 x 1 - 160/16 64pdr SBML

Complement

450



Graphics


<i>Endymion </i>1865
Endymion 1865


Project history

Frigates, 36 guns. Isaac Watts design was approved in 1860. Wooden hull.

Modernizations

1866, Endymion: reduced to 21 guns.

Naval service

No significant events.
