CONSTANCE 4th rate sailing frigates (1846-1849)

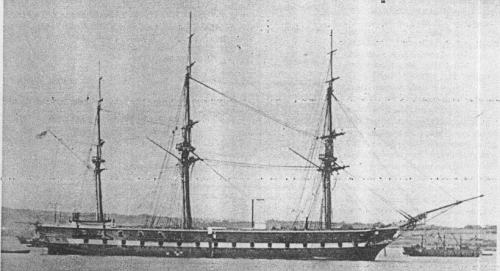

Constance 1860s

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Constance     Pembroke DYd 10.1843 12.3.1846 28.6.1846 screw frigate 1862, sold 1.1875
Arethusa     Pembroke DYd 30.3.1846 20.6.1849 20.3.1850 screw frigate 1861, TS 1874
Octavia     Pembroke DYd 9.1846 18.8.1849 17.10.1849 screw frigate 1861, BU 2.1876
Sutlej     Pembroke DYd 8.1847 17.4.1855 --- completed as screw frigate 1862


Technical data


Data variantsailing screw
Displacement normal, t

2126bm

3832
Displacement full, t





Length, m

54.9 gundeck

77.0 - 77.4 gundeck

Breadth, m

16.1

16.1

Draught, m

4.95 hold depth

7.26

No of shafts



1

Machinery

sails

Octavia: sails + 1 2-cyl HSE

Constance: sails + 1 6-cyl HC

Arethusa: sails + 1 2-cyl HSE, trunked

Power, h. p.

Octavia: 2415ihp

Arethusa: 3165ihp

Constance: 2301ihp

Max speed, kts

Octavia: 11.5

Arethusa: 11.7

Constance: 10.8

Fuel, t

coal

Endurance, nm(kts)
Armament

28 x 1 - 163/18 32pdr 56cwt SBML, 22 x 1 - 161/16 32pdr 45cwt SBML

1 x 1 - 206/15 68pdr 95cwt shell SBML, 8 x 1 - 204/13 68pdr 65cwt shell SBML, 42 x 1 - 163/18 32pdr 56cwt SBML

Complement

450

320



Graphics


<i>Constance </i>1860s
Constance 1860s


Project history

50-gun 4th rate 32pdr frigates. Sir William Symonds design of 1843. One more ship, Liffey, was ordered but reordered in 1851 before the kiel was laid down.

Modernizations

1850s, all: - 10 x 1 - 163/18 32pdr 56cwt; + 10 x 1 - 204/13 68pdr 65cwt shell SBML

1861, Octavia, Arethusa; 1862, Constance: were converted to screw frigates with data as given in the table

by 1868, all: were armed with 4 x 1 - 178/18 7'' 6½ton shell SBML, 24 x 1 - 160/16 64pdr 64cwt SBML

Naval service

No significant events.
