ADVENTURE scout cruisers (2, 1905)





Attentive

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Adventure (ex-Eddystone) D10, P64, P01 741 Armstrong, Elswick 7.1.1904 8.9.1904 10.1905 sold 3.1920
Attentive P03, P06 748 Armstrong, Elswick 8.1.1904 24.11.1904 10.1905 sold 4.1920


Technical data


Displacement normal, t

2640

Displacement full, t
Length, m

114.0 pp 120.4 oa

Breadth, m

11.7

Draught, m

3.73

No of shafts

2

Machinery

2 3-cyl VTE, 12 Yarrow boilers

Power, h. p.

16000

Max speed, kts

25

Fuel, t

coal 450

Endurance, nm(kts)

3000(10)

Armour, mmdeck: 51 - 19, CT: 76
Armament

10 x 1 - 76/50 12pdr 18cwt QF Mk I, 8 x 1 - 47/40 3pdr Hotchkiss Mk I, 2 - 450 TT (beam aw)

Complement

268



Standard scale images

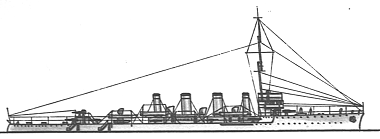

<i>Adventure </i>1905
Adventure 1905


Graphics


<i>Attentive</i>
Attentive


Project history

Eight cruisers were intended to work in company with destroyers as scouts, to lead torpedo attacks and to back up their flotillas when attacked by enemy destroyers. The Admiralty provided a broad specification for the ships and left the detailed design to the builders, a common practice when ordering torpedo craft but unusual with cruisers. The Admiralty requirement was for a 25kt ship, with a 38mm protective deck or equivalent side armour, shallow draught for operating in inshore waters, and an armament of 10 76mm, 8 47mm and 2 TT. They were ordered in four pairs which, as might be expected, resulted in four sub-classes that varied substantially in form, machinery and structure. Only one builder, Fairfield, followed traditional small cruiser style in providing a poop as well as a forecastle, but all abandoned the bulwarks amidships which had become a common feature of Victorian cruisers. The Armstrong pair differed from all the others in having four instead of three funnels and a clipper bow, while the Vickers ships had shorter funnels than the other ships. The Fairfield pair employed side armour abreast the machinery compartments with a protective deck at the ends, while Cammell provided side armour abreast the engine rooms only with a protective deck over the remainder of the ship, an expedient intended to protect the engine cylinders. The remaining ships were fitted in the usual manner with a full length protective deck. The 12pdr QF guns were mounted 3 abreast on the forecastle and aft and two on each side amidships, but this armament was heavily criticised for being too light.

Ship protection

The protective deck was 25mm on the flat and 51mm on the slope amidships, reducing to 19mm flat and 25mm slope at the ends. Also engine glacis had 51mm protection.

Modernizations

1905-1906, both: - 8 x 1 - 47/40; + 2 x 1 - 76/50 12pdr 18cwt QF Mk I, 6 x 1 - 57/40 6pdr Hotchkiss Mk I

8/1912, both: - 12 x 1 - 76/50, 6 x 1 - 57/40; + 9 x 1 - 102/40 QF Mk IV

by 1918, Attentive (as in Jane`s 1919): - 3 x 1 - 102/40, 2 - 450 TT; + 2 x 1 - 152/45 BL Mk VII, 1 x 1 - 76/45 20cwt QF Mk I, 1 x 1 - 57/40 6pdr Hotchkiss Mk I, 2 x 1 - 40/39 2pdr QF Mk II, 2 x 1 - 356 TT

Naval service

Adventure was damaged in January 1920 by ramming by trawler. Attentive 6.8.1907 collided with destroyer Quail off Portland, 27.4.1908 she double collided with destroyers Gala (lost) and Ribble.

Many thanks to Wolfgang Stöhr for additional information on this page.
