MTB31 motor torpedo boats (115, 1940 - 1946)





  MTB89 1940

Ships


Names Builders Completed Losses Transfers Discarding

MTB31 - 40

MTB40K (ex-French)

MTB57 - 66

MTB73, 74

MTB75 (i)

MTB75 (ii)

MTB76 - 98

MTB222 - 245

MTB347 - 362

MTB380 - 385

MTB386, 1948 - P1001 MTB1001

MTB387 - 391

MTB392, 1948 - P1002 MTB1002

MTB393 - 395

MTB523 - 527, 1948 - P1023-1027 MTB1023 - 1027

MTB528

MTB529 - 530, 1948 - P1029-1030 MTB1029 - 1030

MTB531

MTB532 - 533, 1948 - P1032-1033 MTB1032 - 1033

MTB534 - 537

Vosper, Portsmouth: MTB31 - 40, 57 - 66, 73 - 85, 97, 98, 242 - 245, 347 - 349, 351 - 354, 380 - 395, 523 - 533

Morgan Gyles, Teignmouth: MTB86, 95, 96, 240, 241, 360 - 362

Harland & Wolff, Belfast: MTB87 - 92, 350, 355 - 359

Berthon, Lymington: MTB93, 94, 232 - 235

McLean, Renfrew: MTB222 - 228

McGruer, Clyder: MTB229 - 231

Camper & Nicholson, Gosport: MTB236 - 239

7-8/1940: MTB31, 32, 34

3-12/1941: MTB35, 36, 38, 57 - 60, 73, 74

1-12/1942: MTB61 - 66, 75 (ii), 76 - 79, 82 - 91, 93 - 98, 222 - 227, 229 - 245

1-9/1943: MTB80, 81, 92, 228, 347 - 361

1-12/1944: MTB362, 380 - 387, 390 - 393

1-12/1945: MTB388, 389, 394, 395, 523, 525, 533

1-12/1946: MTB524, 526 - 530, 532

MTB33 (26.9.1940 on stocks), MTB37 (11.1.1941 on stocks), MTB39 (11.1.1941 on stocks), MTB40 (11.1.1941 on stocks), MTB75 (i) (11.1.1941 on stocks), MTB531, 534 - 537 cancelled

MTB61 (9.8.1943), MTB63 (2.4.1943), MTB64 (2.4.1943), MTB73 (24.11.1943), MTB74 (28.3.1942), MTB77 (8.9.1943), MTB80 (1943), MTB87 (31.10.1942), MTB93 (18.8.1944), MTB222 (10.11.1943), MTB230 (10.11.1943), MTB237 (7.8.1942), MTB241 (31.3.1944), MTB242 (7/1945), MTB347 (1.10.1944), MTB352 (26.3.1944), MTB356 (16.10.1943), MTB357 (23.12.1943), MTB360 (1.10.1944), FPB1023 (17.5.1953), FPB1030 (28.3.1950)

France, 11-12/1942: MTB90 - 92, 94, 96, 98 (all returned 1946), 227 (returned 1945), 239 (returned 1945)

Netherlands, 4.1942: MTB222 (Sperwer, returned 6.1942), 6.1942: MTB235 (Sperwer), MTB240 (Buizerd), 7.1943: MTB229 (Gier), 8.1943: MTB231 (Stormvogel), MTB236 (Havik)

Denmark, 1949: MTB1023 - 1027, 1029, 1030, 1032, 1033

1941: MTB40K

1943: MTB31, 32, 34, 35, 361

1944: MTB36, 38, 57 - 60, 62, 66, 75 (ii), 76, 79, 88, 95, 232, 238, 243, 244

1945: MTB65, 78, 80 - 82, 97, 223, 225, 226, 233, 234, 348 - 351, 353 - 355, 358, 359, 361, 362, 385, 387, 388, 390, 531, 537

1946: MTB84 - 86, 89, 224, 245, 380, 383, 384

1947: MTB228, 382, 391

1948: MTB83, 90 - 92, 94, 96, 98, 227, 239, 381, 389, 393 - 395, 528

1949: P1001

1956: P1002



Technical data


Displacement standard, t

35 - 39.4

Displacement full, t43.5 - 47
Length, m

22.1

from MTB380: 22.3

Breadth, m

5.84

from MTB347: 5.92

Draught, m1.12 - 1.27 deep load
No of shafts

3

Machinery

MTB31 - 34: 3 Isotta-Fraschini petrol engines

MTB35 - 40, 40K, 57 - 66: 3 Hall Scott petrol engines

late boats: 3 Packard petrol engines

Power, h. p.

MTB31 - 34: 3450

MTB35 - 40, 40K, 57 - 66: 2700

MTB73 - 98, 222 - 245: 3750

MTB347 - 362: 4050

MTB380 - 395, 523 - 537: 4200

Max speed, kts

MTB31 - 34: 40

MTB35 - 40, 40K, 57 - 66: 25 - 28

late boats: 37 - 40

Fuel, t

petrol 11400 - 11700 l

Endurance, nm(kts)
Armament

MTB31 - 40, 40K: 1 x 2 - 12.7/62, 2 - 533 TT

MTB57 - 66: 1 x 2 - 12.7/62, 2 x 2 - 7.7/94, 2 - 533 TT

MTB73, 75 - 98: 1 x 2 - 12.7/62, 2 x 2 - 7.7/94, 2 - 533 TT, 4 DC

MTB74: 2 - 450 TT

MTB222 - 245: 1 x 2 - 12.7/62, 2 x 2 - 7.7/94, 2 - 533 TT, 2 DC

MTB347 - 362: 1 x 1 - 20/70 Oerlikon Mk II/IV or 1 x 2 - 12.7/62, 2 x 2 - 7.7/94, 2 - 533 TT, 2 DC

MTB380 - 395: 1 x 2 - 20/70 Oerlikon Mk II/IV, 2 x 2 - 7.7/94, 4 - 450 TT, 2 DC

MTB523, 525, 533: 1 x 1 - 57/43 6pdr 7cwt QF Mk II, 1 x 2 - 20/70 Oerlikon Mk II/IV, 2 x 2 - 7.7/94, 2 - 450 TT, 2 DC

MTB524, 526, 527, 529, 530, 532: 1 x 1 - 57/43 Mk VII, 1 x 2 - 20/70 Mk XII, 2 x 2 - 7.7/94, 2 - 450 TT, 2 DC

MTB528: 1 x 1 - 114/19 Mk I, 1 x 2 - 20/70 Mk XII, 2 x 2 - 7.7/94, 2 - 450 TT, 2 DC

Electronic equipment

completed 1942-1943: type 286U or type 286PU radar

completed 1943-1944: type 291U radar

completed 1944-1946: type 291U or type 293 radar

Complement

12 - 13



Standard scale images


<i>MTB35</i> 1940
MTB35 1940
<i>MTB523</i> 1943
MTB523 1943


Graphics

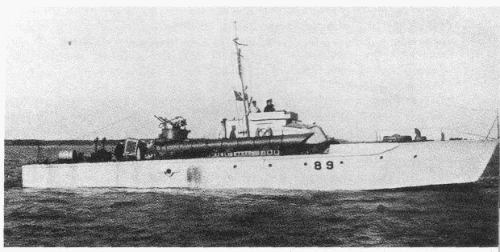

  <i>MTB89</i> 1940
  MTB89 1940

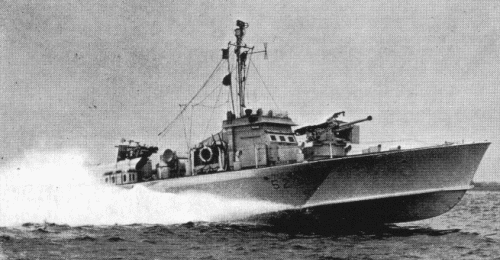

  <i>MTB523</i> 1944
  MTB523 1944


Project history

One of standard British-built MTBs of WWII era. Wooden-hulled.

Modernizations

1942: all survived boats with Hall Scott engines were re-engined with 3 Packard engines

1942-1943, many completed 1940-1942: + type 286PU radar

1943, survived MTB31 - 40: - 1 x 2 - 12.7/62; + 1 x 1 - 20/70 Oerlikon Mk II/IV

1943-1944, most earlier boats: - type 286U or type 286PU radar; + type 291U radar

1943 - 1944, survived MTB73 - 98, 222 - 245: - 1 x 2 - 12.7/62; + 1 x 2 - 20/70 Oerlikon Mk II/IV, 1 x 1 - 20/70 Oerlikon Mk II/IV

1/1946: 1 x 1 - 57/43 Mk VII (MTB523, 525, 533), 1 x 2 - 20/70 Mk XII or 1 x 1 - 20/70 Mk III or (1 x 2 - 20/70 Mk XII, 1 x 1 - 20/70 Mk III), 2 - 450 TT or 2 - 533 TT, 2 DC, type 291U or type 293 radar

Naval service

1941: MTB40K became motor minesweeper attendant craft MAC7

1943: MTB31, 32, 34 became controlled targets CT22, 24 and 23

1943: MTB361 became CT36

1945: MTB353, 354 became CT38, 39; MTB358, 359 became CT34, 35; MTB361, 362 became CT36, 37; MTB531, 537 became CT44, 45

1950: MTB1002 was reclassified to FPB (fast patrol boat).
