NAVYPEDIA

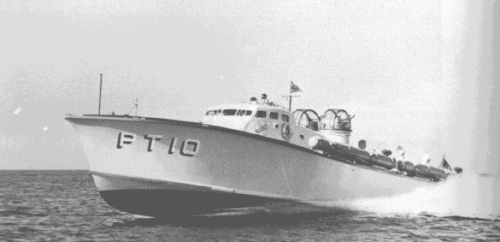

PT10 on trials

Ships

Names	Builders	Completed	Losses	Transfers	Discarding
MTB259 - 268 (ex-PT10 - 19)	Elco, Bayonne, USA: MTB259-268	11 - 12.1940 // 3.1941: MTB259-268	MTB259 (14.6.1942), MTB261 (26.8.1945), MTB262 (24.2.1943), MTB264 (10.5.1943), MTB267 (2.4.1943)	None	to USA 3.1946: MTB260, 263, 265, 266, 268

Technical data

Displacement standard, t	32
Displacement full, t
Length, m	21.3
Breadth, m	6.30
Draught, m	1.60
No of shafts	3
Machinery	3 Packard petrol engines
Power, h. p.	4050
Max speed, kts	39
Fuel, t	petrol 13600 l
Endurance, nm(kts)
Armament	2 х 2 - 12.7/90, 2 x 2 - 7.7/87, 2 - 533 TT, 2 DC
Complement	17

Standard scale images

Graphics

Project history

Ex-USN boats.

Modernizations

1942-1943, many survived: + type 286PU radar

1943-1944, many survived: - type 286PU radar; + type 291U radar

Naval service

No significant events.
