MTB102 motor torpedo boat (1, 1938)
MTB102 1938
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
| MTB102 | Vosper, Portsmouth: MTB102 | 5.1938, commissioned 7.1940: MTB102 | None |
None | to War Dept. 1.1943: MTB102 |
Technical data
| Displacement standard, t | 18.6 |
|---|---|
| Displacement full, t | 32 |
| Length, m | 21.2 |
| Breadth, m | 4.50 |
| Draught, m | 0.97 |
| No of shafts | 3 |
| Machinery | 3 Isotta-Fraschini petrol engines |
| Power, h. p. | 3150 |
| Max speed, kts | 41 |
| Fuel, t | petrol 4400 l |
| Endurance, nm(kts) | |
| Armament | 1 - 533 TT (2) |
| Complement | 10 |
Standard scale images

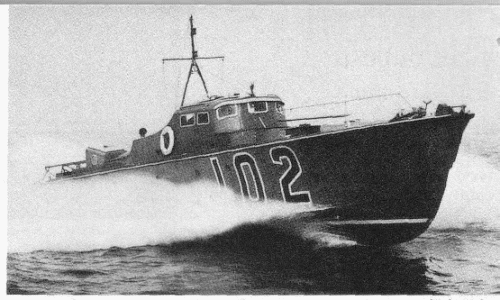

MTB102 1940
Graphics
MTB102 1938
Project history
Experimental wooden-hulled boat.
Modernizations
None.
Naval service
MTB102 was transferred to RAF as SAR boat in 1943.
