DUNCAN screw ships-of-the-line (1860)

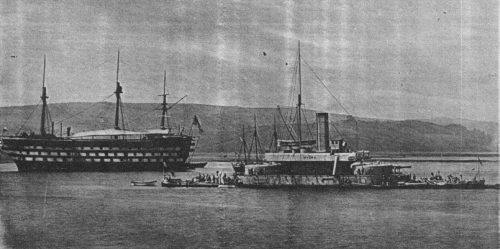

Duncan (left) and Hydra (right)

Ships


Name

No

Yard No

Builder

Laid down

Launched

Comp

Fate

Gibraltar     Devonport DYd 10.1858 16.8.1860 28.8.1860 TS 1872
Duncan     Portsmouth DYd 2.5.1857 13.2.1859 5.1.1860 Coast Guard 6.1867


Technical data


Displacement normal, t

5724

Displacement full, t

5950

Length, m

76.8 pp

Breadth, m

17.7

Draught, m

7.77 hold depth

No of shafts

1

Machinery

Duncan: sails + boilers, 1 2-cyl HSE trunk

Gibraltar: sails + boilers, 1 2-cyl HSE

Power, h. p.

Duncan: 3428ihp

Gibraltar: 3494ihp

Max speed, kts

Duncan: 13.2

Gibraltar: 10.9

Fuel, t

coal

Endurance, nm(kts)
Armament

1 x 1 - 206/15 68pdr 95cwt shell SBML, 36 x 1 - 204/13 8'' 65cwt shell SBML, 36 x 1 - 163/18 32pdr 56cwt SBML, 28 x 1 - 161/15 32pdr 42cwt SBML

Complement

930



Graphics


<i>Duncan </i> (left) and <i>Hydra </i>(right)
Duncan (left) and Hydra (right)


Project history

New 101-gun ships. Surveyor's Department design of 1857. Longer and broader version of Conqureror class, with the same armament. Both re-classed as 99-gun in 1861, to 85-gun in 1862 and to 81-gun in 1863. In 1867 there was a design proposed by Reed to fit Duncan as a breastwork turret ironclad, but this was cancelled for financial reasons. Wooden hull.

One more ship of class Robust was ordered in 1857 but in 1858 re-ordered as 90-gun ship.

Modernizations

1862, both: - 4 x 1 - 163/18, 28 x 1 - 161/15; + 1 x 1 - 183/14 110pdr 82cwt BL, 4 x 1 - 160/15 70pdr 42cwt BL

1863, both: - 4 x 1 - 160/15

Naval service

No significant events.
